SKU: HCFL213-40

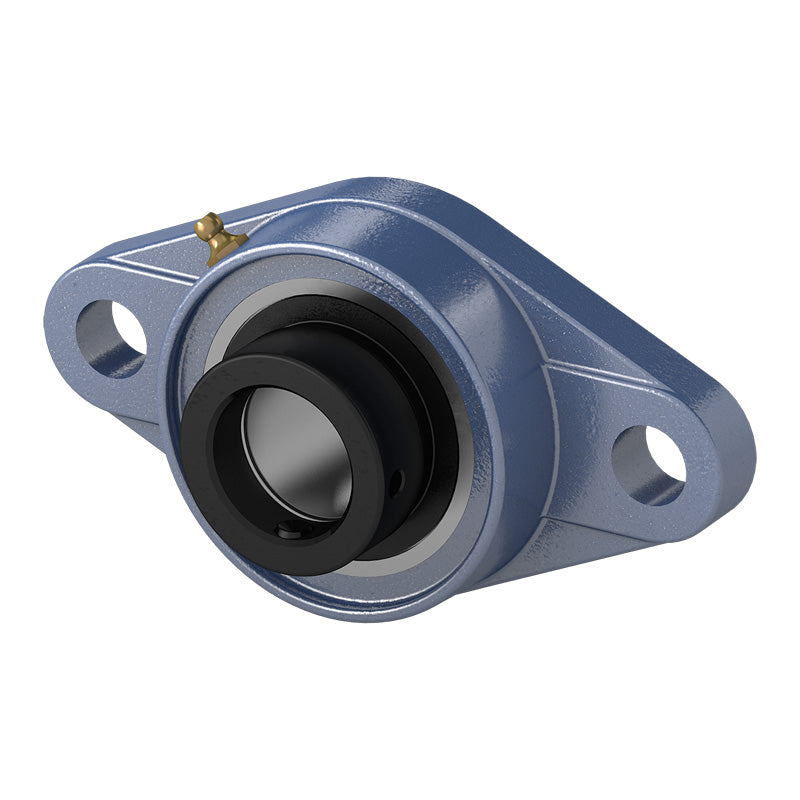

HCFL213-40 Imperial Two Bolt Cast Iron Oval Housing with 2-1/2 inch Eccentric Collar Insert
HCFL213-40 Imperial Two Bolt Cast Iron Oval Housing with 2-1/2 inch Eccentric Collar Insert
Regular price
CHF 79.00
ex VAT
Regular price
Sale price
CHF 79.00
ex VAT
In stock
Price Break
3+
CHF 62.82
4+
CHF 59.29
9+
CHF 58.58
19+
CHF 57.87
49+
CHF 57.17
99+
CHF 56.46
499+
CHF 52.93
999+
CHF 52.23
1999+
CHF 51.52
2999+
CHF 50.82
4999+
CHF 49.41
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- HCFL
- Bolt Hole Centres:
- 209.95mm = 8.266 (8-17/64) inch
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| a | 10-5/32 inch |
| e | 8-17/64 inch |
| i | 1-3/16 inch |
| g | 7/8 inch |
| l | 1-31/32 inch |
| s | 29/32 inch |
| b | 6-3/32 inch |
| z | 3-7/32 inch |
| B1 | 3.374 inch |
| n | 1.343 inch |
| Bolt size | 3/4 inch |
| Bearing no | HC213-40 |
| Housing no | FL213 |
| Weight | 5.2 kg |
