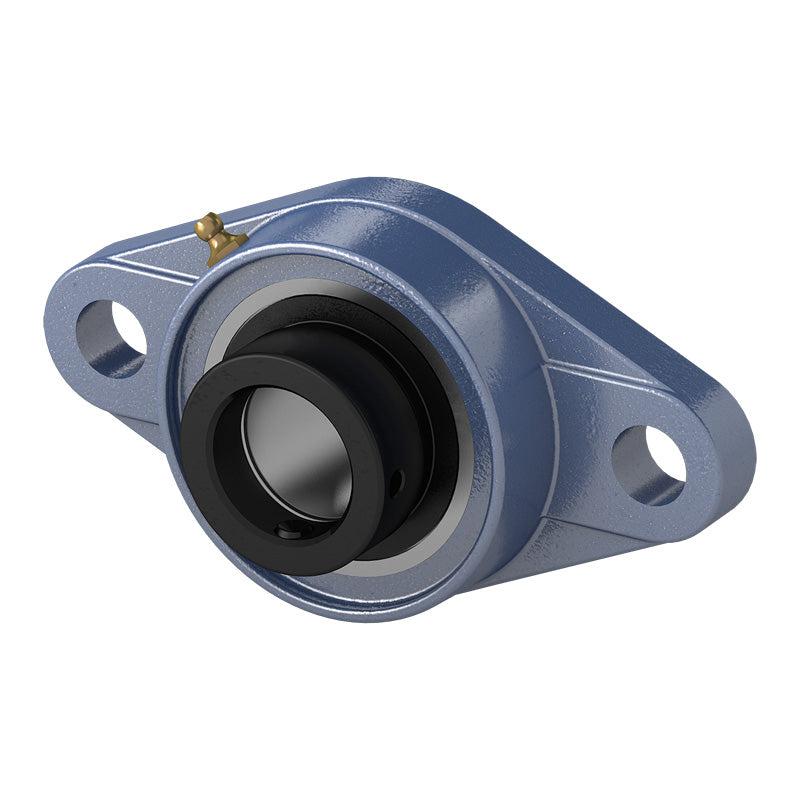

HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
Regular price
CHF 96.10
ex VAT
Regular price
Sale price
CHF 96.10
ex VAT
In stock
Price Break
10+
CHF 85.53
19+
CHF 80.72
29+
CHF 79.76
39+
CHF 78.80
49+
CHF 77.84
74+
CHF 76.88
99+
CHF 72.08
199+
CHF 71.11
249+
CHF 70.15
499+
CHF 69.19
999+
CHF 67.27
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- HCFL
- Bolt Hole Centres:
- 216mm
Technical
Technical
| d | 70mm |
|---|---|
| a | 265mm |
| e | 216mm |
| i | 31mm |
| g | 22mm |
| l | 54mm |
| s | 23mm |
| b | 160mm |
| z | 82.6mm |
| B1 | 85.7mm |
| n | 34.1mm |
| Bolt size | M20 |
| Bearing no | HC214 |
| Housing no | FL214 |
| Weight | 5.53 kg |
