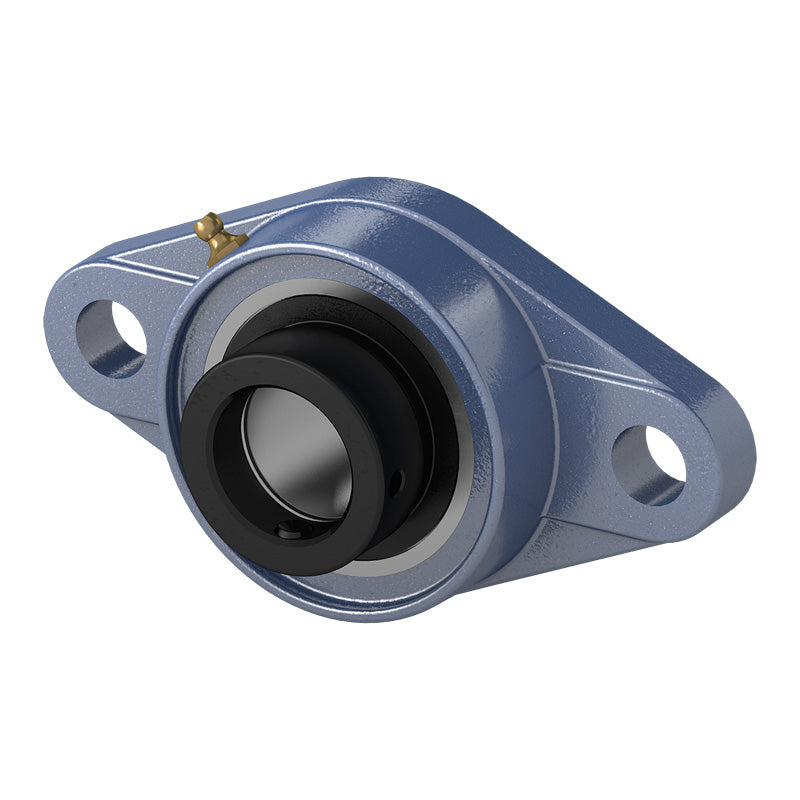

HCFL215 Metric Two Bolt Cast Iron Oval Housing with 75mm Eccentric Collar Insert
HCFL215 Metric Two Bolt Cast Iron Oval Housing with 75mm Eccentric Collar Insert
Regular price
CHF 132.00
ex VAT
Regular price
Sale price
CHF 132.00
ex VAT
In stock
Price Break
3+
CHF 105.06
4+
CHF 99.16
9+
CHF 97.98
19+
CHF 96.80
49+
CHF 95.62
99+
CHF 94.44
499+
CHF 88.53
999+
CHF 87.35
1999+
CHF 86.17
2999+
CHF 84.99
4999+
CHF 82.63
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- HCFL
- Bolt Hole Centres:
- 225mm
Technical
Technical
| d | 75mm |
|---|---|
| a | 275mm |
| e | 225mm |
| i | 34mm |
| g | 22mm |
| l | 56mm |
| s | 23mm |
| b | 165mm |
| z | 88.8mm |
| B1 | 92.1mm |
| n | 37.3mm |
| Bolt size | M20 |
| Bearing no | HC215 |
| Housing no | FL215 |
| Weight | 6.09 kg |
