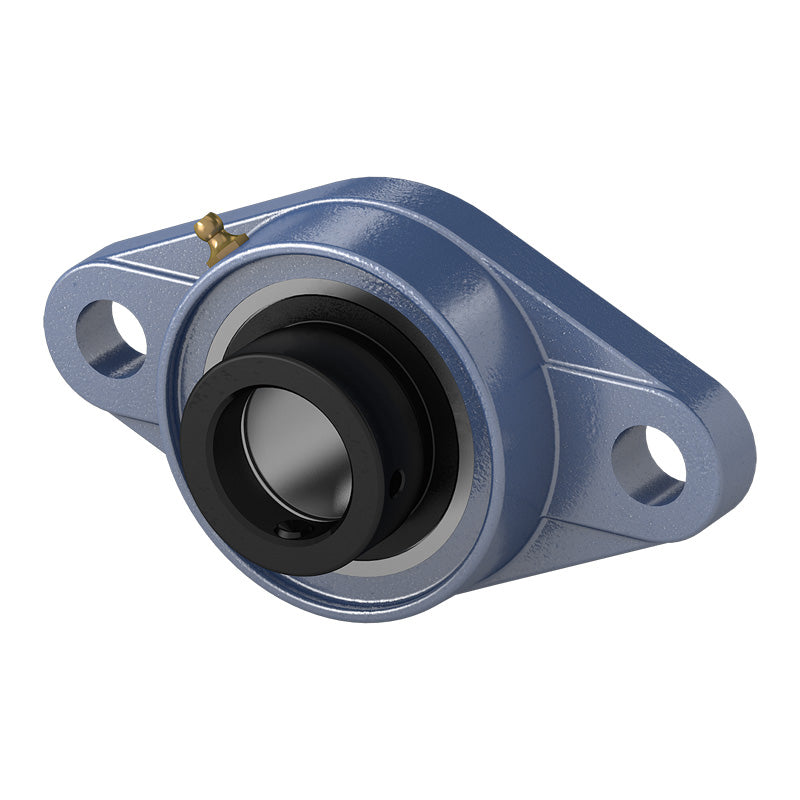

HCFL216 Metric Two Bolt Cast Iron Oval Housing with 80mm Eccentric Collar Insert
HCFL216 Metric Two Bolt Cast Iron Oval Housing with 80mm Eccentric Collar Insert
Regular price
CHF 158.85
ex VAT
Regular price
Sale price
CHF 158.85
ex VAT
In stock
Price Break
10+
CHF 141.38
19+
CHF 133.43
29+
CHF 131.85
39+
CHF 130.26
49+
CHF 128.67
74+
CHF 127.08
99+
CHF 119.14
199+
CHF 117.55
249+
CHF 115.96
499+
CHF 114.37
999+
CHF 111.20
Couldn't load pickup availability
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- HCFL
- Bolt Hole Centres:
- 233mm
Technical
Technical
| d | 80mm |
|---|---|
| a | 290mm |
| e | 233mm |
| i | 34mm |
| g | 22mm |
| l | 58mm |
| s | 25mm |
| b | 180mm |
| z | 91.9mm |
| B1 | 95.2mm |
| n | 37.3mm |
| Bolt size | M22 |
| Bearing no | HC216 |
| Housing no | FL216 |
| Weight | 7.5867 kg |
