SKU: HCP207-22
HCP207-22 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/8 inch Eccentric Collar Insert
HCP207-22 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/8 inch Eccentric Collar Insert
Regular price
CHF 30.76
ex VAT
Regular price
Sale price
CHF 30.76
ex VAT
In stock
Price Break
10+
CHF 27.38
19+
CHF 25.84
29+
CHF 25.53
39+
CHF 25.22
49+
CHF 24.92
74+
CHF 24.61
99+
CHF 23.07
199+
CHF 22.76
249+
CHF 22.45
499+
CHF 22.15
999+
CHF 21.53
Couldn't load pickup availability
Description
Description
HCP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing. The bearing insert has an eccentric collar and grub screws to allow locking to the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- HCP
- Bolt Hole Centres:
- 127mm = 5 inch

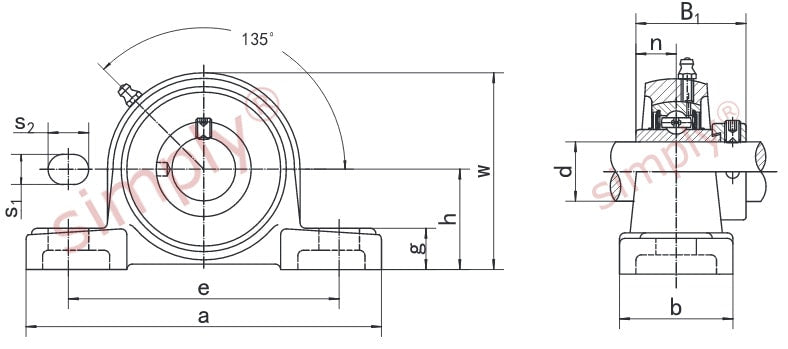

Technical
Technical
| d | 1-3/8 inch |
|---|---|
| h | 1-7/8 inch |
| e | 5 inch |
| a | 6-9/16 inch |
| b | 1-7/8 inch |
| s1 | 43/64 inch |
| s2 | 25/32 inch |
| g | 45/64 inch |
| w | 3-21/32 inch |
| B1 | 2.012 inch |
| n | 0.74 inch |
| Bolt size | 1/2 inch |
| Bearing no | HC207-22 |
| Housing no | P207 |
| Weight | 1.6 kg |
