• SKF HE211B Imperial Adaptor Sleeve for 2 inch Shaft
1 1

SKU: HE211B-SKF

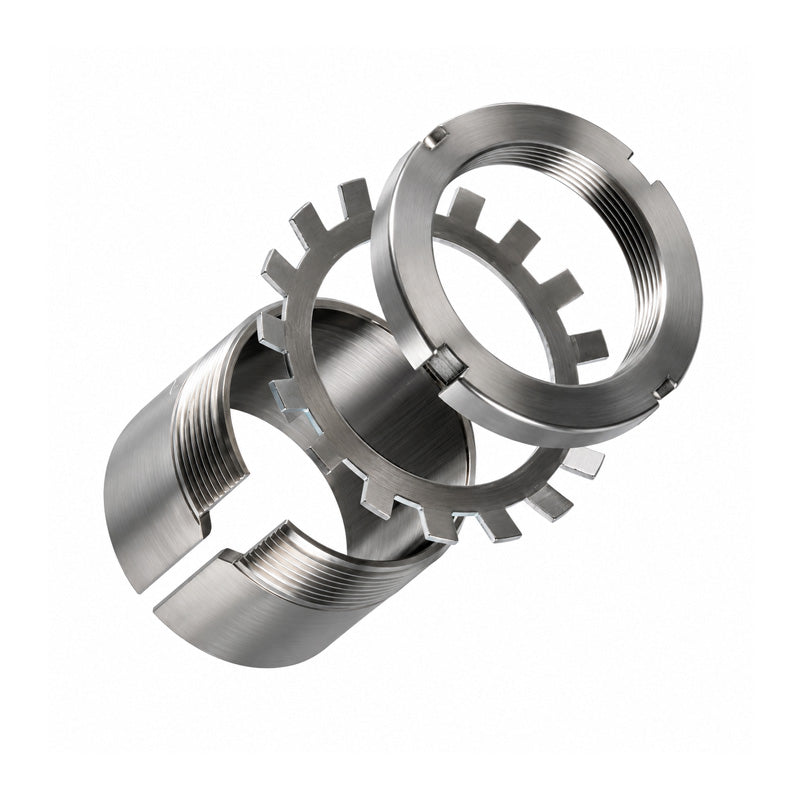

SKF HE211B Imperial Adaptor Sleeve for 2 inch Shaft

SKF HE211B Imperial Adaptor Sleeve for 2 inch Shaft
CHF 38.00 ex VAT
CHF 38.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 29.79
5+ CHF 28.11
10+ CHF 27.78
20+ CHF 27.44
49+ CHF 27.11
74+ CHF 26.78
99+ CHF 25.10
199+ CHF 24.77
249+ CHF 24.43
499+ CHF 24.10
999+ CHF 23.43
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
75mm
Width:
37mm
Technical
--- Dimensions
d1 50.80mm (2)inch
d 55mm
d3 75mm
B1 37mm
B2 12.5mm
G W55x1/19mm
Weight 0.26 kg
--- Assembly Parts
Sleeve HE211B
Nut HM11
Washer MB11
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1211K+taper>1211K</a>
