• HE2322 Budget Imperial Adaptor Sleeve for 4 inch Shaft
1 1

SKU: HE2322-EU

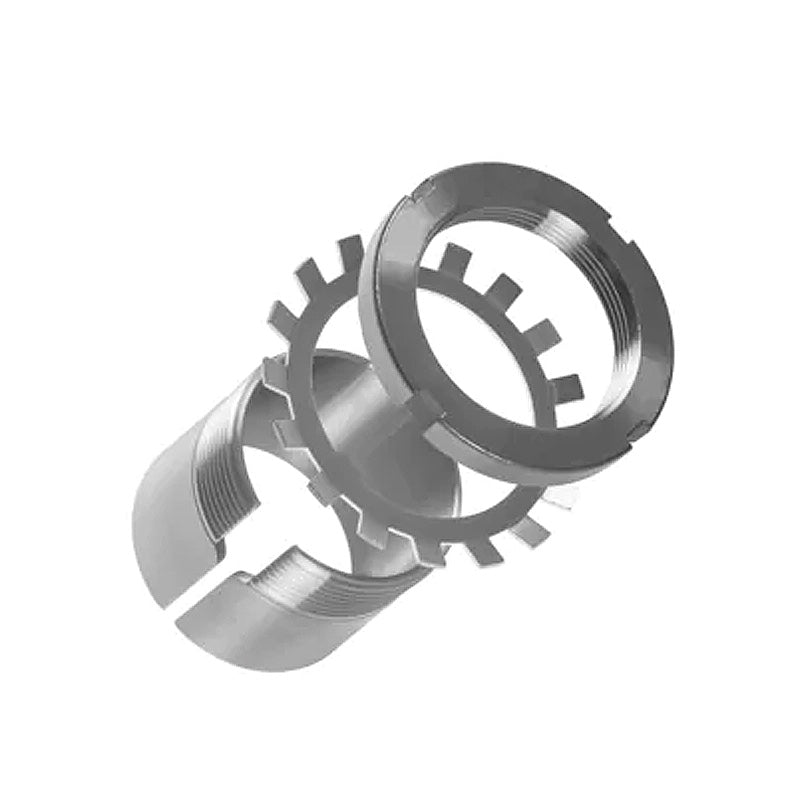

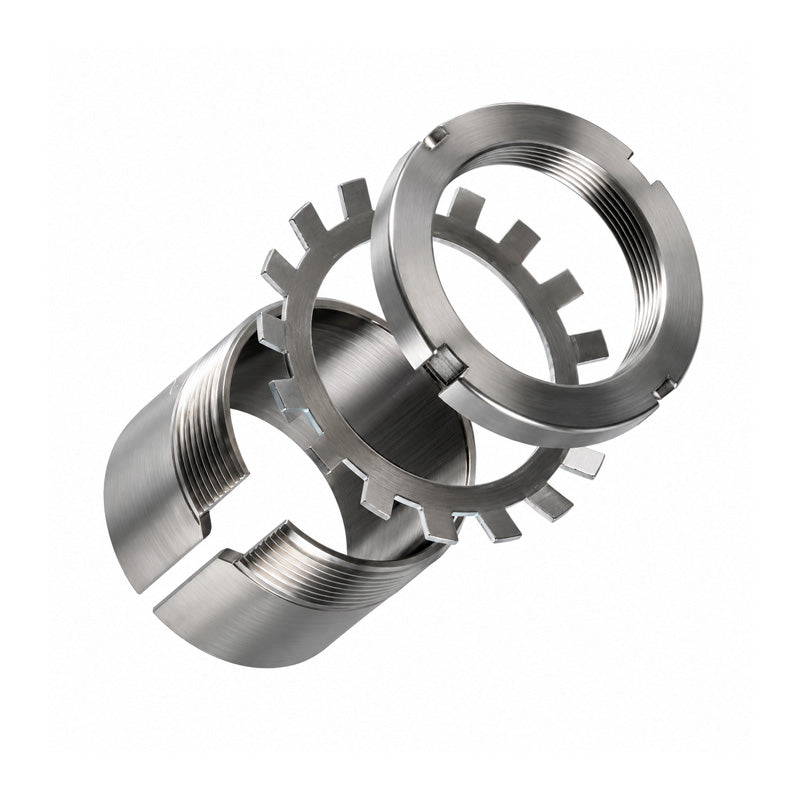

HE2322 Budget Imperial Adaptor Sleeve for 4 inch Shaft

HE2322 Budget Imperial Adaptor Sleeve for 4 inch Shaft
CHF 188.00 ex VAT
CHF 188.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 149.52
19+ CHF 141.12
29+ CHF 139.44
39+ CHF 137.76
49+ CHF 136.08
74+ CHF 134.40
99+ CHF 126.00
199+ CHF 124.32
249+ CHF 122.64
499+ CHF 120.96
999+ CHF 117.60
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
101.6mm = 4 inch
Outside Diameter:
145mm
Width:
105mm
Technical
--- Dimensions
d1 101.6mm (4) inch
d 110mm
d3 145mm
B1 105mm
B2 21mm
G Thread 110x2mm
Weight 2.4 kg
--- Assembly Parts
Sleeve HE2322
Nut KM22
Washer MB22
Hydraulic nut HMV22E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2322K+taper>2322K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23222K+taper>23222K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22322K+taper>22322K</a>
