SKU: HFL.0822.EU

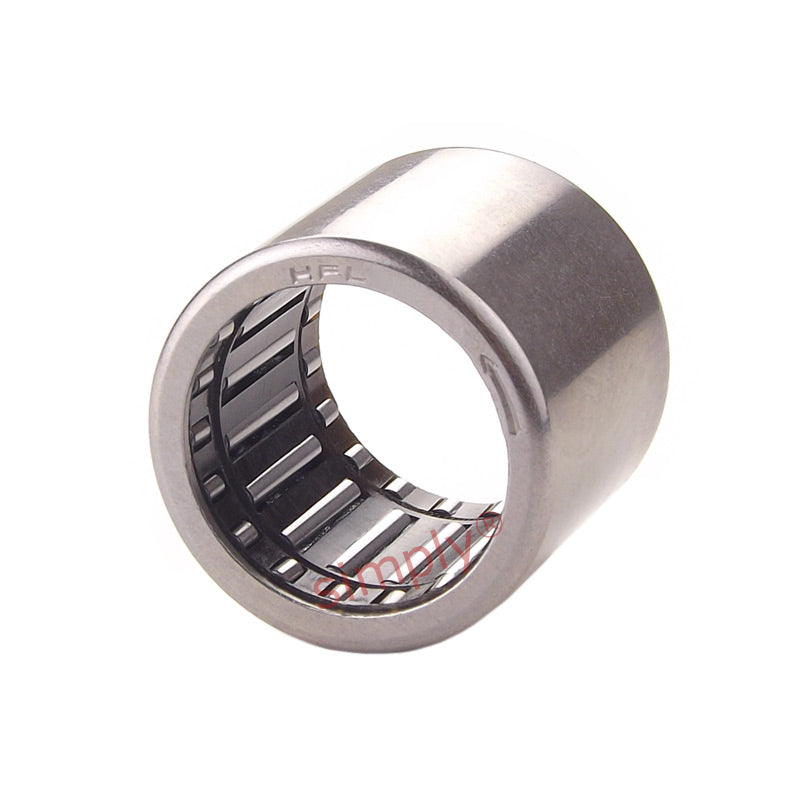

HFL0822 Needle Roller Clutch Type One Way Bearing 8x12x22mm
HFL0822 Needle Roller Clutch Type One Way Bearing 8x12x22mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
10+
CHF 9.52
19+
CHF 8.98
29+
CHF 8.88
39+
CHF 8.77
49+
CHF 8.66
74+
CHF 8.55
99+
CHF 8.02
199+
CHF 7.91
249+
CHF 7.81
499+
CHF 7.70
999+
CHF 7.49
Share this product
Description
Description
|
Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Width:
- 22mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 12mm |
| C | 22mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 3.15 N m |
| Speed (rotating shaft) | 17000 rpm |
| Speed (rotating outer ring) | 12000 rpm |
| Weight | 7 g |
