SKU: HFL.1226.EU

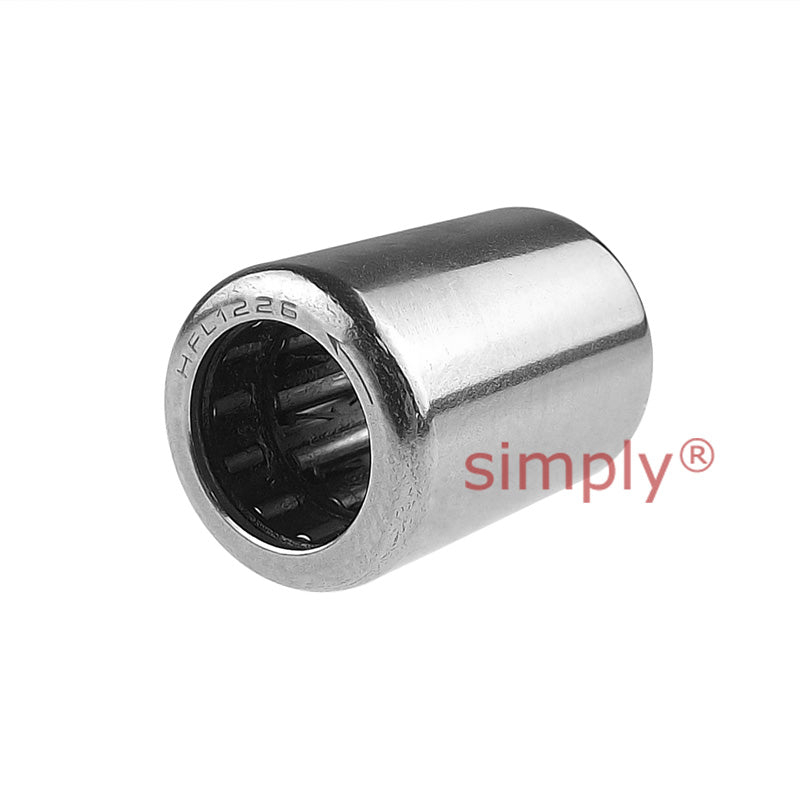

HFL1226 Budget Needle Roller Clutch Type One Way Bearing 12x18x26mm
HFL1226 Budget Needle Roller Clutch Type One Way Bearing 12x18x26mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
In stock
Price Break
10+
CHF 6.28
19+
CHF 5.92
29+
CHF 5.85
39+
CHF 5.78
49+
CHF 5.71
74+
CHF 5.64
99+
CHF 5.29
199+
CHF 5.22
249+
CHF 5.15
499+
CHF 5.08
999+
CHF 4.94
Share this product
Description
Description
|
Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Width:
- 26mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 18mm |
| C | 26mm (Tolerance: 0/-0.3) |
| r min | 0.3mm |
| Permissable torque | 12.2 Nm |
| Speed (rotating shaft) | 11000 rpm |
| Speed (rotating outer ring) | 8000 rpm |
| Maximum permissable radial load | 6300 N |
| Limiting load | 6700 N/min |
| Weight | 18 g |
