SKU: HFL.1226.MB

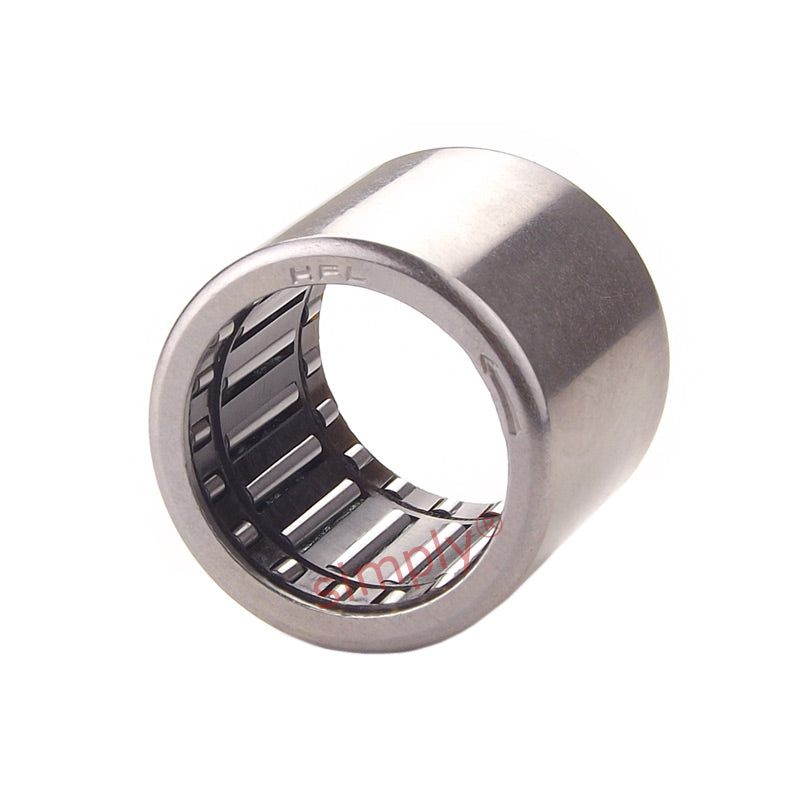

Branded HFL1226 Needle Roller Clutch Type One Way Bearing 12x18x26mm
Branded HFL1226 Needle Roller Clutch Type One Way Bearing 12x18x26mm
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
In stock
Price Break
10+
CHF 18.62
19+
CHF 17.58
29+
CHF 17.37
39+
CHF 17.16
49+
CHF 16.95
74+
CHF 16.74
99+
CHF 15.69
199+
CHF 15.48
249+
CHF 15.27
499+
CHF 15.06
999+
CHF 14.65
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Width:
- 26mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 18mm |
| C | 26mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 12.2 N m |
| Speed (rotating shaft) | 11000 rpm |
| Speed (rotating outer ring) | 8000 rpm |
| Weight | 18 g |
