SKU: HFL.1826.MB

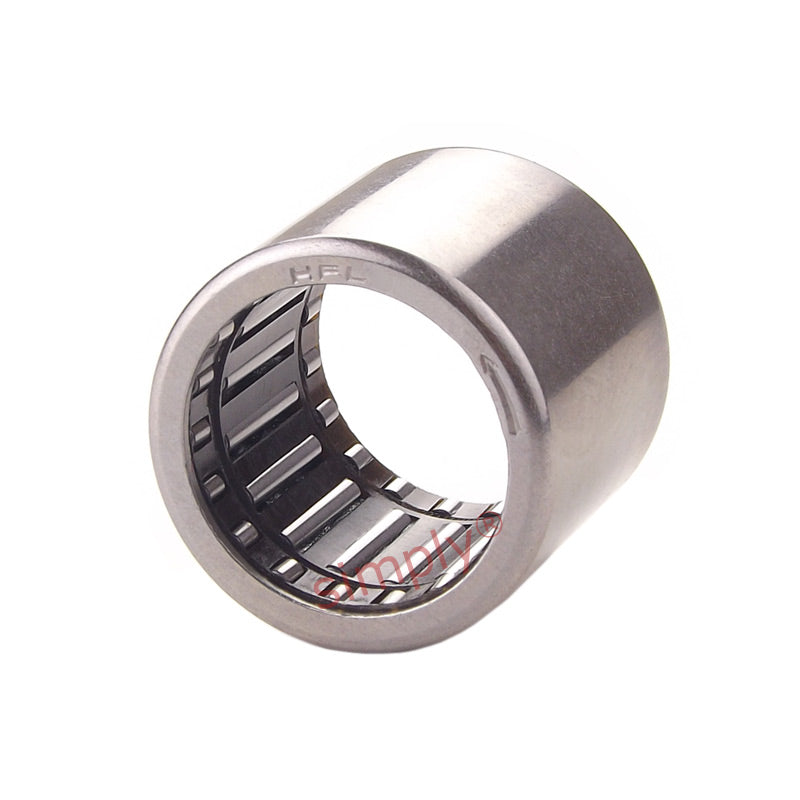

Branded HFL1826 Needle Roller Clutch Type One Way Bearing 18x24x26mm
Branded HFL1826 Needle Roller Clutch Type One Way Bearing 18x24x26mm
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
In stock
Price Break
10+
CHF 23.04
19+
CHF 21.75
29+
CHF 21.49
39+
CHF 21.23
49+
CHF 20.97
74+
CHF 20.71
99+
CHF 19.42
199+
CHF 19.16
249+
CHF 18.90
499+
CHF 18.64
999+
CHF 18.13
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 26mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 24mm |
| C | 26mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 24.1 N m |
| Speed (rotating shaft) | 7500 rpm |
| Speed (rotating outer ring) | 7500 rpm |
| Weight | 25 g |
