SKU: HFL.3530.MB

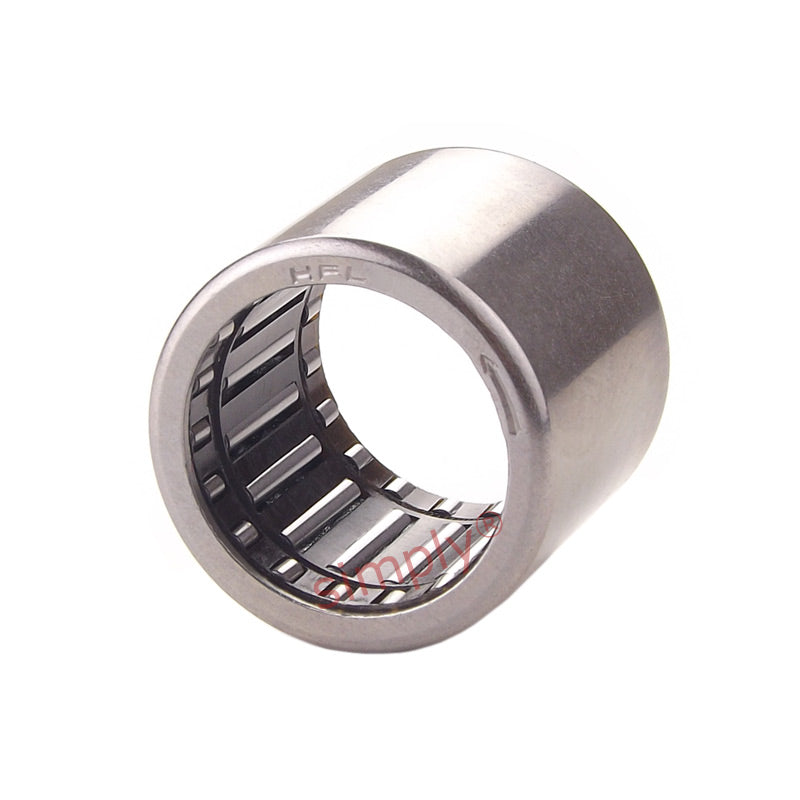

Branded HFL3530 Needle Roller Clutch Type One Way Bearing 35x42x30mm
Branded HFL3530 Needle Roller Clutch Type One Way Bearing 35x42x30mm
Regular price
CHF 42.00
ex VAT
Regular price
Sale price
CHF 42.00
ex VAT
In stock
Price Break
10+
CHF 33.44
19+
CHF 31.56
29+
CHF 31.19
39+
CHF 30.81
49+
CHF 30.44
74+
CHF 30.06
99+
CHF 28.18
199+
CHF 27.81
249+
CHF 27.43
499+
CHF 27.05
999+
CHF 26.30
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 121 N m |
| Speed (rotating shaft) | 3900 rpm |
| Speed (rotating outer ring) | 3900 rpm |
| Weight | 58 g |
