SKU: HGJ25-JCS

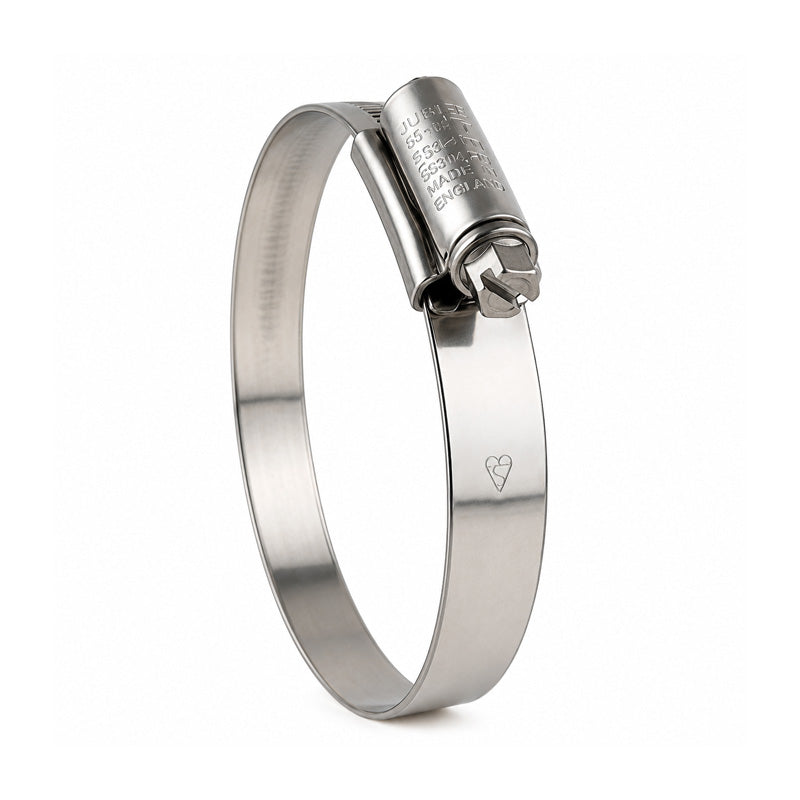

JCS HGJ25 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 17-25mm Band Width 13mm
JCS HGJ25 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 17-25mm Band Width 13mm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
In stock
Price Break
3+
CHF 6.83
5+
CHF 6.45
9+
CHF 6.37
19+
CHF 6.30
49+
CHF 6.22
74+
CHF 6.14
99+
CHF 5.76
199+
CHF 5.68
249+
CHF 5.61
499+
CHF 5.53
999+
CHF 5.38
Share this product
Description
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 17mm
- Max Adjustment Range:
- 25mm
Technical
Technical
| BS No. | 25 |
|---|---|
| Adjustment Range (mm) | 17-25mm |
| Adjustment Range (inch) | 3/4 - 1 inch |
| A | 8mm |
| B | 15mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
