SKU: HGS12-JCS

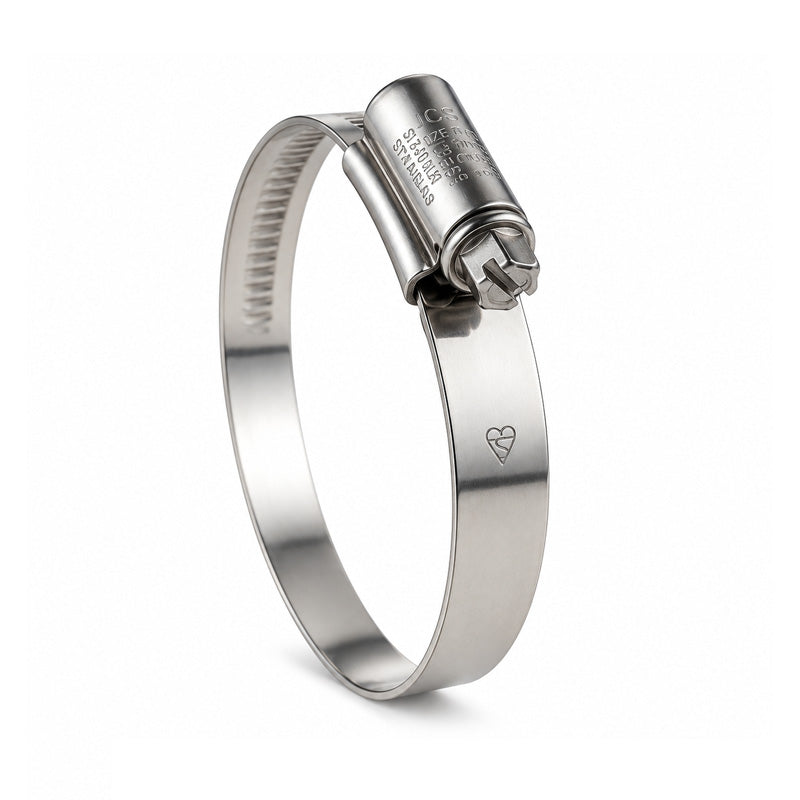

JCS HGS12 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 9.5-12mm Band Width 9mm
JCS HGS12 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 9.5-12mm Band Width 9mm
Regular price
CHF 5.00
ex VAT
Regular price
Sale price
CHF 5.00
ex VAT
In stock
Price Break
5+
CHF 2.84
10+
CHF 2.44
20+
CHF 2.23
50+
CHF 2.03
100+
CHF 1.62
500+
CHF 1.42
1000+
CHF 1.22
Share this product
Description
Description
304 Stainless Steel Hi-Grip Worm Drive Hose Clips: Hi-Grip stainless steel worm drive hose clips have become the industry standard for demanding applications throughout the world due to their exceptional quality and performance. Made entirely from 18/8 marine quality stainless steel and with Lloyds Register Approval, they are ideal for saltwater and other corrosive environments. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 9mm
- Min Adjustment Range:
- 9.5mm
- Max Adjustment Range:
- 12mm
Technical
Technical
| BS No. | 12 |
|---|---|
| Adjustment Range (mm) | 9.5-12mm |
| Adjustment Range (inch) | 3/8 - 1/2 inch |
| A | 7mm |
| B | 14mm |
| C | 10mm |
| D | 12mm |
| E | 9mm |
| F | 0.7mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 3Nm |
| Recommended Torque lb-in | 26lb-in |
