SKU: HGS25-JCS

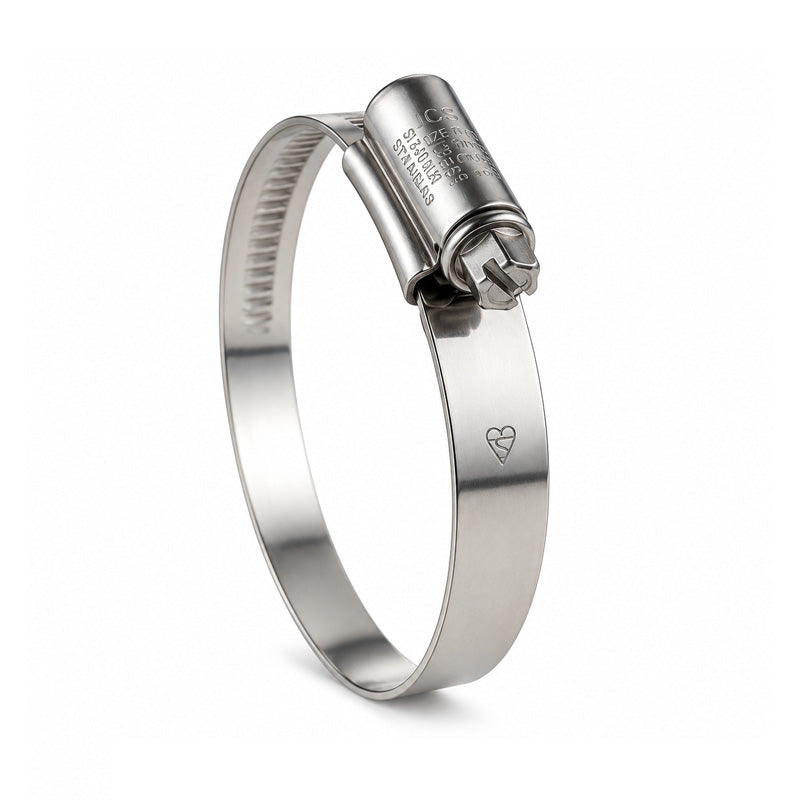

JCS HGS25 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 17-25mm Band Width 13mm
JCS HGS25 304 Stainless Steel Hi-Grip Hose Clip Adjustment Range 17-25mm Band Width 13mm
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
In stock
Price Break
5+
CHF 3.35
10+
CHF 2.87
20+
CHF 2.63
50+
CHF 2.39
100+
CHF 1.91
500+
CHF 1.67
1000+
CHF 1.43
Share this product
Description
Description
304 Stainless Steel Hi-Grip Worm Drive Hose Clips: Hi-Grip stainless steel worm drive hose clips have become the industry standard for demanding applications throughout the world due to their exceptional quality and performance. Made entirely from 18/8 marine quality stainless steel and with Lloyds Register Approval, they are ideal for saltwater and other corrosive environments. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 17mm
- Max Adjustment Range:
- 25mm
Technical
Technical
| BS No. | 25 |
|---|---|
| Adjustment Range (mm) | 17-25mm |
| Adjustment Range (inch) | 3/4 - 1 inch |
| A | 8mm |
| B | 15mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
