SKU: HK1212FM-NTN

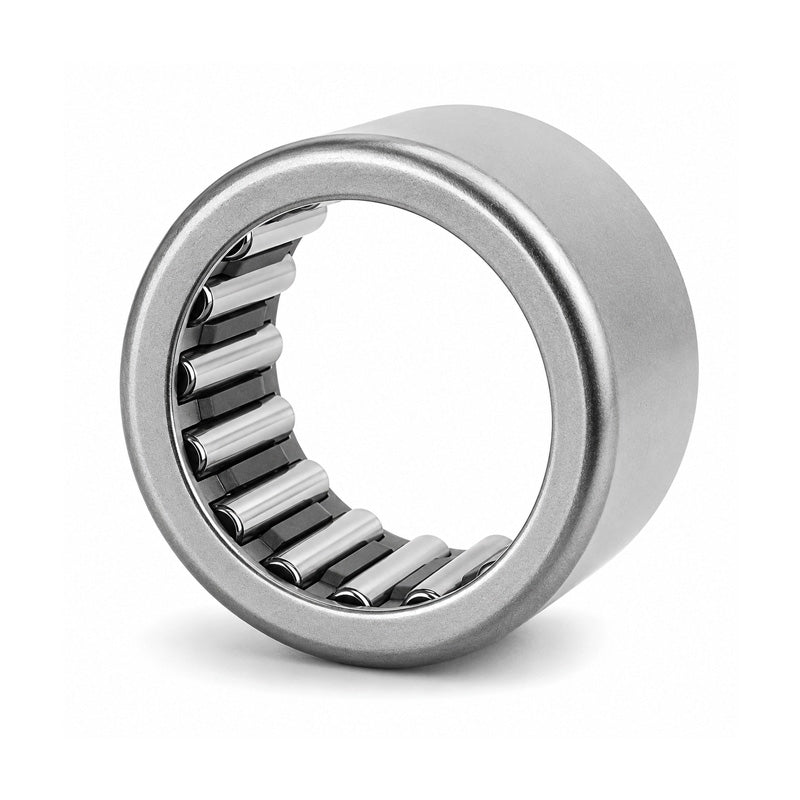

NTN HK1212FM Drawn Cup Needle Roller Bearing with Open End 12x18x12mm - Allow 2-3 Days

NTN HK1212FM Drawn Cup Needle Roller Bearing with Open End 12x18x12mm - Allow 2-3 Days
Regular price CHF 6.00 ex VAT
Regular price Sale price CHF 6.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 3.35
4+ CHF 2.87
9+ CHF 2.63
19+ CHF 2.39
49+ CHF 1.91
99+ CHF 1.67
499+ CHF 1.43
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 12mm
D - Outside diameter 18mm
C - Width of bearing, drawn cup or outer ring 12mm
Lubrication hole on outer ring? No
Inner ring reference IR8X12X12.5
Cr - Dynamic load rating 6.6 kN
C0r - Static load rating 7.3 kN
N - Grease lubrication limit speed 13000 tr/min
N - Oil lubrication limit speed 20000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
