SKU: HK1516LL/3AS-NTN

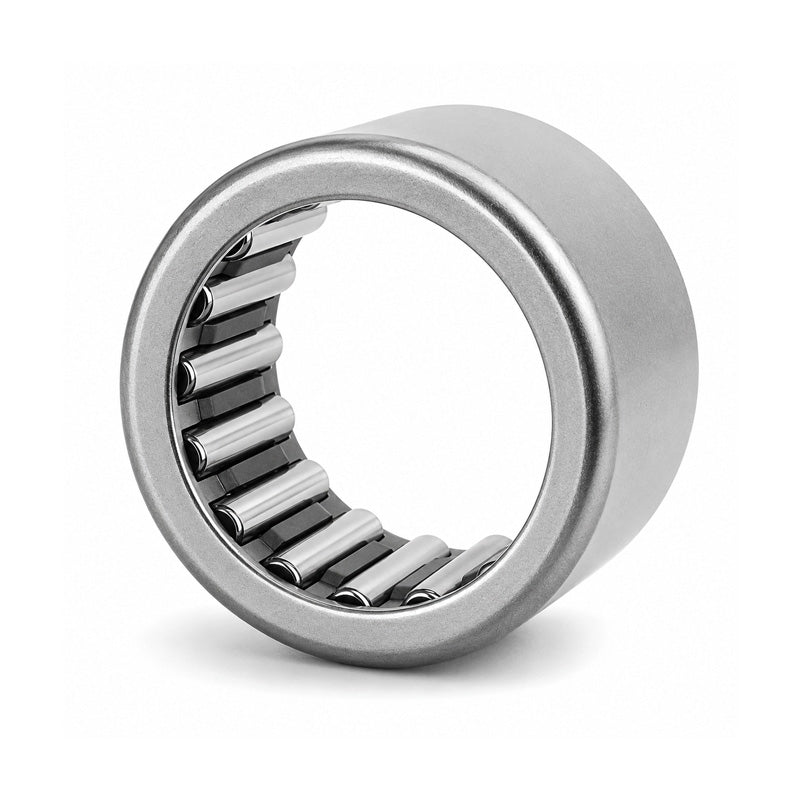

NTN HK1516LL/3AS Drawn Cup Needle Roller Bearing with Open End 15x21x16mm - Allow 2-3 Days
NTN HK1516LL/3AS Drawn Cup Needle Roller Bearing with Open End 15x21x16mm - Allow 2-3 Days
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
3+
CHF 5.55
4+
CHF 5.24
9+
CHF 5.18
19+
CHF 5.12
49+
CHF 5.05
99+
CHF 4.99
499+
CHF 4.68
999+
CHF 4.62
1999+
CHF 4.56
2999+
CHF 4.49
4999+
CHF 4.37
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 15mm |
|---|---|
| D - Outside diameter | 21mm |
| C2 - Width of drawn cup LL | 16mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR12X15X16.5 |
| Cr - Dynamic load rating | 7.5 kN |
| C0r - Static load rating | 9.1 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
