SKU: HK1522ZWD-NTN

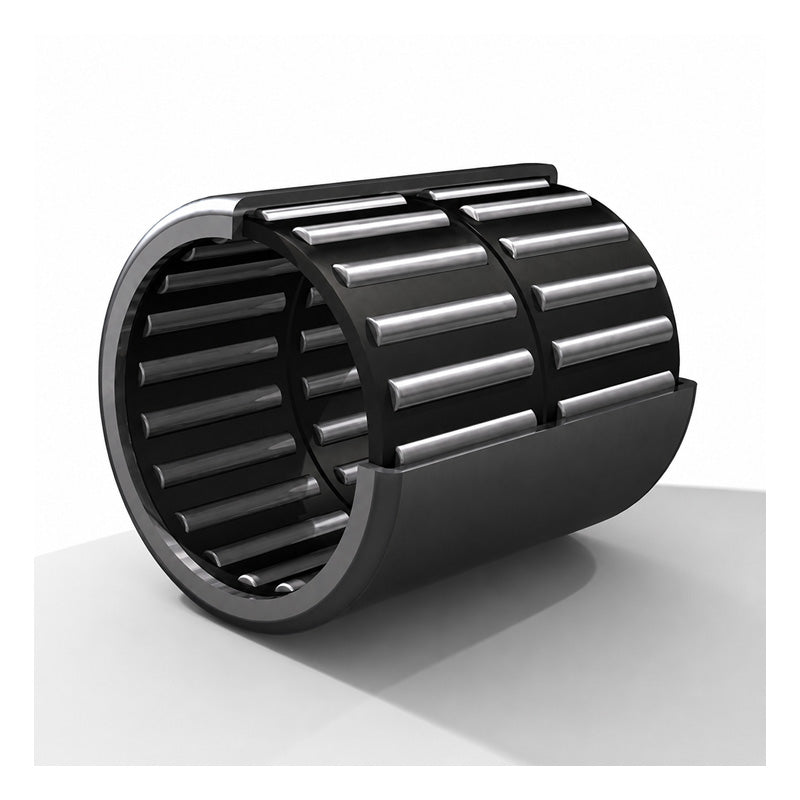

NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm

NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm
Regular price CHF 7.00 ex VAT
Regular price Sale price CHF 7.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 5.10
4+ CHF 4.81
9+ CHF 4.76
19+ CHF 4.70
49+ CHF 4.64
99+ CHF 4.58
499+ CHF 4.30
999+ CHF 4.24
1999+ CHF 4.18
2999+ CHF 4.13
4999+ CHF 4.01
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 15mm
D - Outside diameter 21mm
C - Width of bearing, drawn cup or outer ring 22mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference IR12X15X22.5
Cr - Dynamic load rating 12.9 kN
C0r - Static load rating 18.2 kN
N - Grease lubrication limit speed 11000 tr/min
N - Oil lubrication limit speed 16000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
