SKU: HK1614L/3AS-NTN

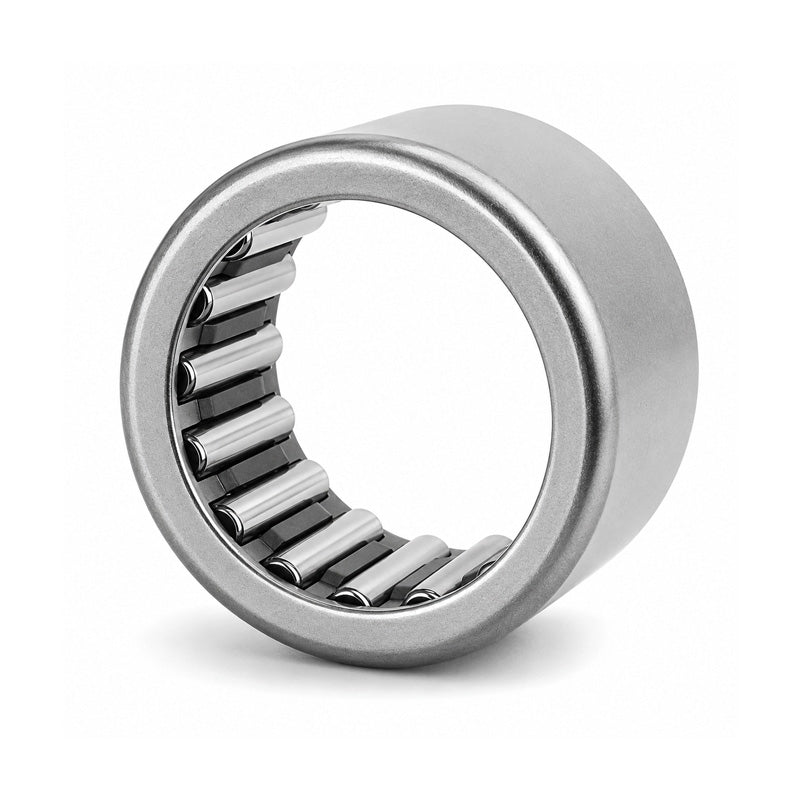

NTN HK1614L/3AS Drawn Cup Needle Roller Bearing with Open End 16x22x14mm
NTN HK1614L/3AS Drawn Cup Needle Roller Bearing with Open End 16x22x14mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
3+
CHF 5.27
4+
CHF 4.97
9+
CHF 4.91
19+
CHF 4.85
49+
CHF 4.80
99+
CHF 4.74
499+
CHF 4.44
999+
CHF 4.38
1999+
CHF 4.32
2999+
CHF 4.26
4999+
CHF 4.14
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 14mm
Technical
Technical
| Fw - Inside diameter | 16mm |
|---|---|
| D - Outside diameter | 22mm |
| C1 - Width of Drawn cup L | 14mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR12X16X16 |
| Cr - Dynamic load rating | 7.75 kN |
| C0r - Static load rating | 9.7 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
