SKU: HK1616-MB

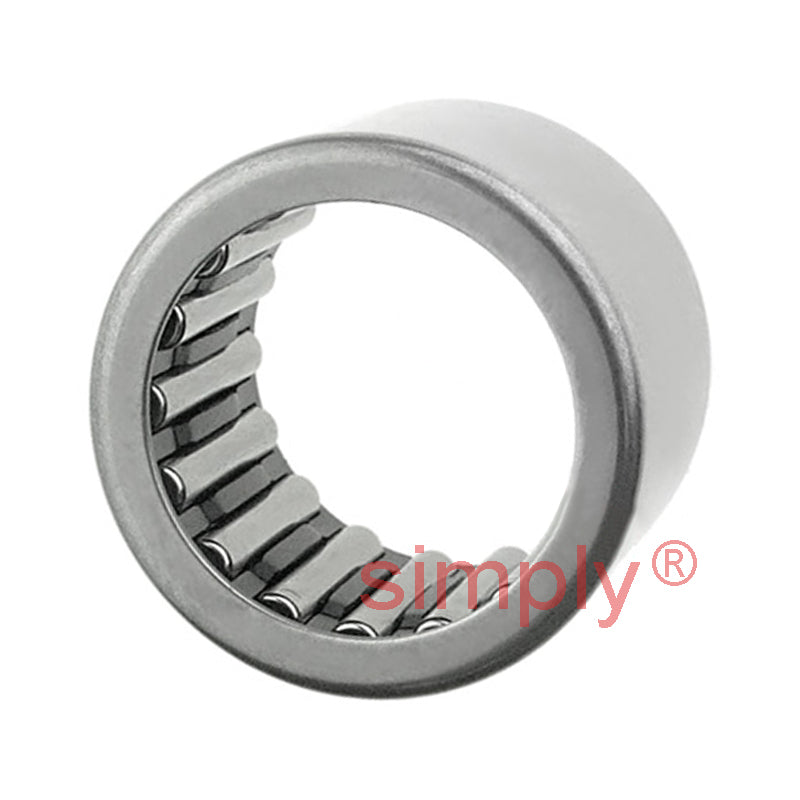

Major Brand HK1616 Drawn Cup Type Needle Roller Bearing with Two Open Ends 16x22x16mm
Major Brand HK1616 Drawn Cup Type Needle Roller Bearing with Two Open Ends 16x22x16mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Equivalent to: TLA1616Z RHNA162216
In stock
Price Break
10+
CHF 4.95
19+
CHF 4.67
29+
CHF 4.61
39+
CHF 4.56
49+
CHF 4.50
74+
CHF 4.45
99+
CHF 4.17
199+
CHF 4.11
249+
CHF 4.06
499+
CHF 4.00
999+
CHF 3.89
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA1616Z RHNA162216
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 16mm |
| Dynamic load | 10500 N |
| Static load | 15600 N |
| Fatigue load limit Pu | 1800 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x16 |
| Seal | G/SD16x22x3 |
| Weight | 16 g |
