SKU: HK2212-MB

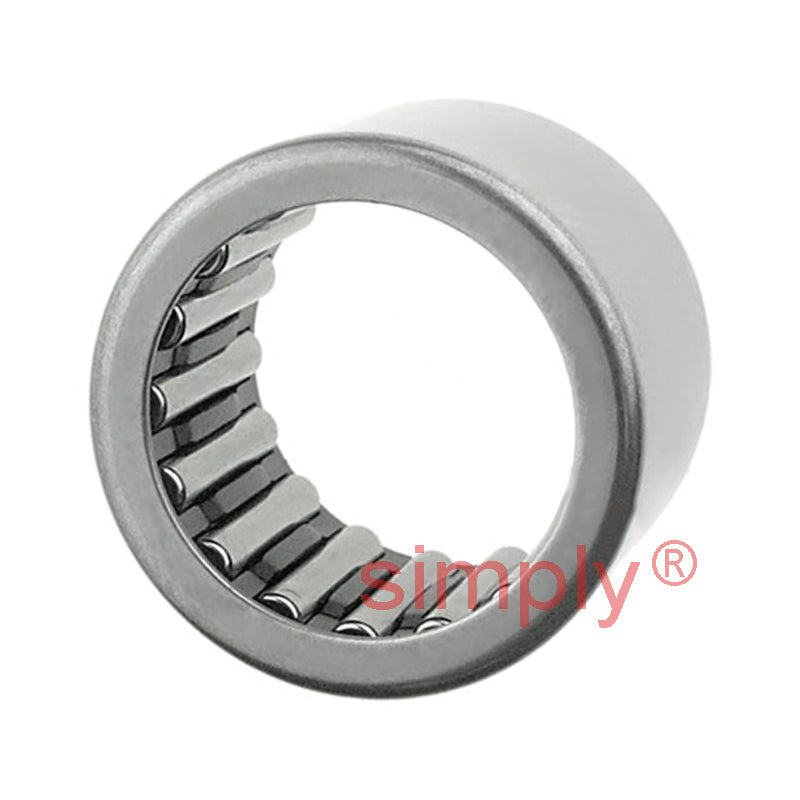

Major Brand HK2212 Drawn Cup Type Needle Roller Bearing with Two Open Ends 22x28x12mm
Major Brand HK2212 Drawn Cup Type Needle Roller Bearing with Two Open Ends 22x28x12mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Equivalent to: TLA2212Z RHNA222812
In stock
Price Break
10+
CHF 5.28
19+
CHF 4.98
29+
CHF 4.93
39+
CHF 4.87
49+
CHF 4.81
74+
CHF 4.75
99+
CHF 4.45
199+
CHF 4.39
249+
CHF 4.33
499+
CHF 4.27
999+
CHF 4.15
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA2212Z RHNA222812
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 12mm |
| Dynamic load | 8800 N |
| Static load | 13700 N |
| Fatigue load limit Pu | 1560 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x13 |
| Seal | G/SD22x28x4 |
| Weight | 15 g |
