SKU: HK2216-EU

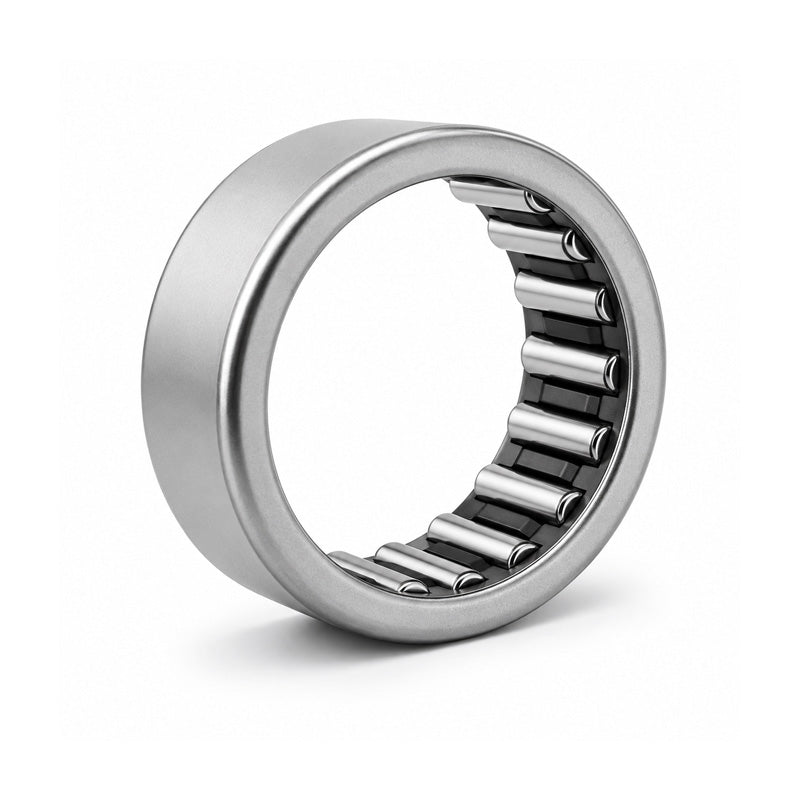

HK2216 Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x16mm
HK2216 Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x16mm
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: TLA2216Z RHNA222816
In stock
Price Break
10+
CHF 4.14
19+
CHF 3.91
29+
CHF 3.86
39+
CHF 3.82
49+
CHF 3.77
74+
CHF 3.73
99+
CHF 3.49
199+
CHF 3.45
249+
CHF 3.40
499+
CHF 3.35
999+
CHF 3.26
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA2216Z RHNA222816
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 16mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 16mm |
| Dynamic load C | 13000 N |
| Static load Co | 22400 N |
| Fatigue load limit Pu | 2600 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x16 |
| Seal | G/SD22x28x4 |
| Weight | 21 g |
