SKU: HK3018L/3AS-NTN

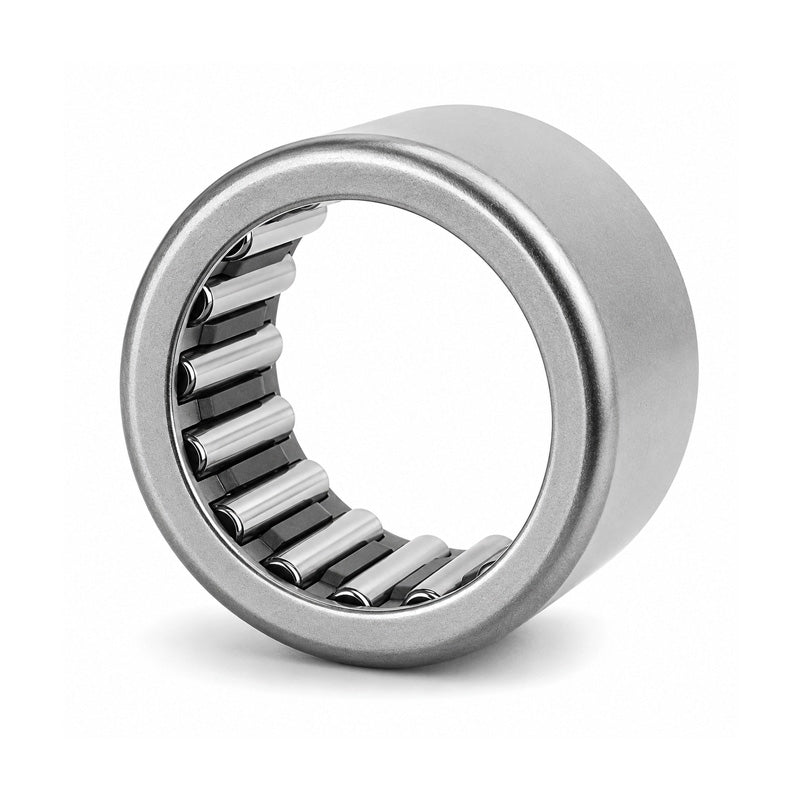

NTN HK3018L/3AS Drawn Cup Needle Roller Bearing with Open End 30x37x18mm - Allow 2-3 Days

NTN HK3018L/3AS Drawn Cup Needle Roller Bearing with Open End 30x37x18mm - Allow 2-3 Days
Regular price CHF 7.00 ex VAT
Regular price Sale price CHF 7.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 5.46
4+ CHF 5.24
9+ CHF 5.13
19+ CHF 4.97
49+ CHF 4.86
99+ CHF 4.58
499+ CHF 3.86
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 30mm
D - Outside diameter 37mm
C1 - Width of Drawn cup L 18mm
C3 - Max drawn cup closed end thickness LL 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR25X30X20
Cr - Dynamic load rating 18.1 kN
C0r - Static load rating 30 kN
N - Grease lubrication limit speed 5500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
