SKU: HK3038ZWD-NTN

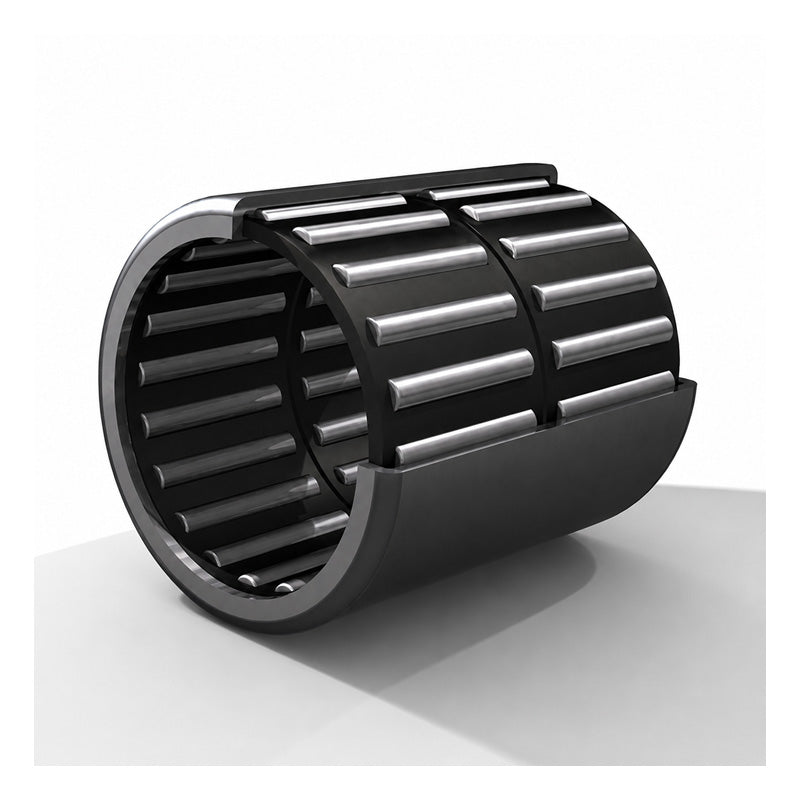

NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm

NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm
Regular price CHF 10.00 ex VAT
Regular price Sale price CHF 10.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 7.92
4+ CHF 7.48
9+ CHF 7.39
19+ CHF 7.30
49+ CHF 7.21
99+ CHF 7.12
499+ CHF 6.68
999+ CHF 6.59
1999+ CHF 6.50
2999+ CHF 6.41
4999+ CHF 6.23
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 30mm
D - Outside diameter 37mm
C - Width of bearing, drawn cup or outer ring 38mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference IR25X30X38.5
Cr - Dynamic load rating 38.5 kN
C0r - Static load rating 78.5 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
