SKU: HK3520-MB

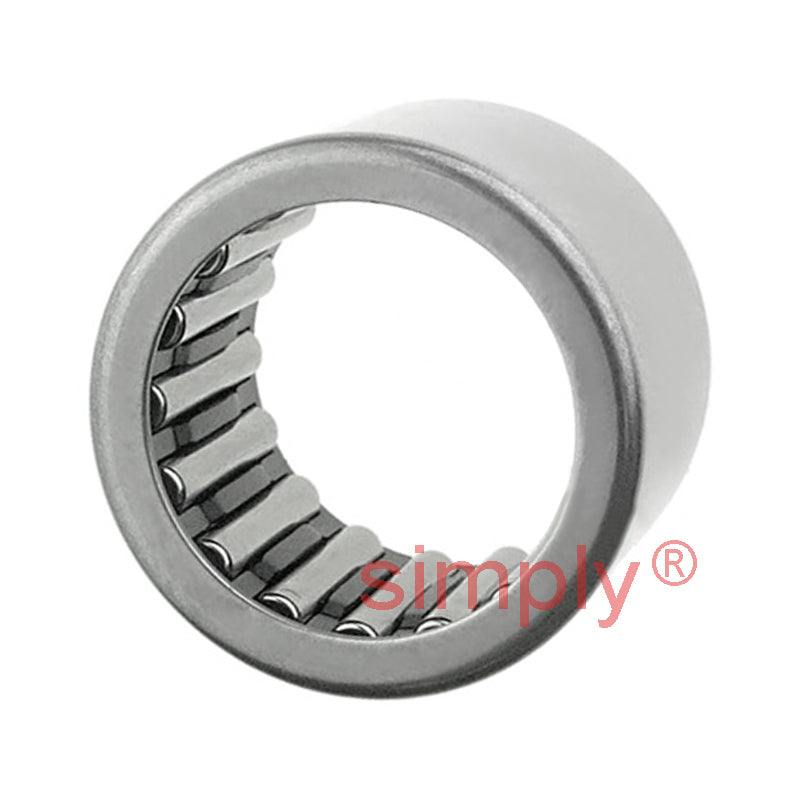

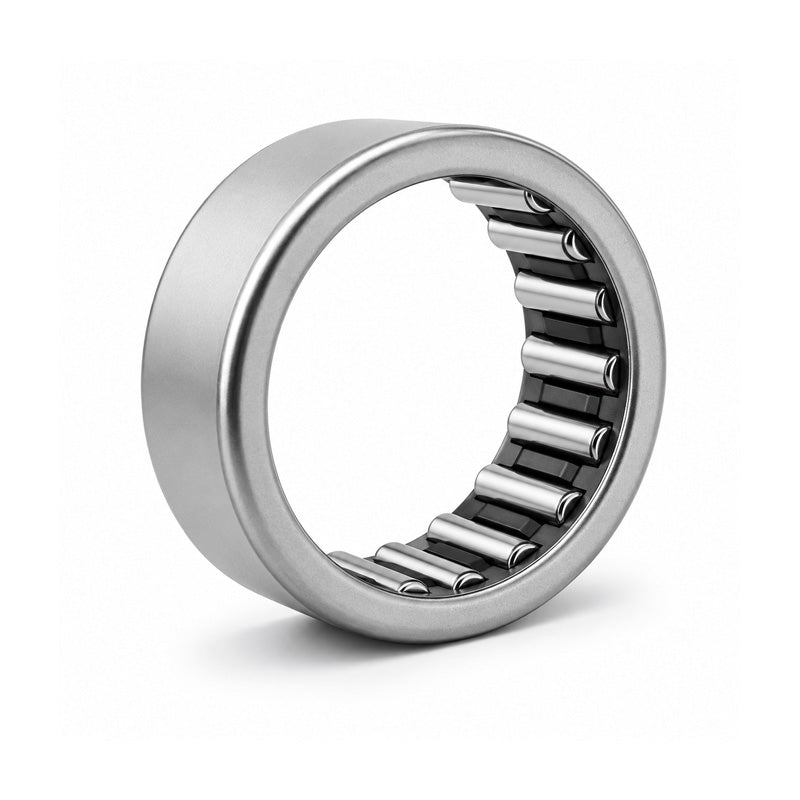

Major Brand HK3520 Drawn Cup Type Needle Roller Bearing with Two Open Ends 35x42x20mm
Major Brand HK3520 Drawn Cup Type Needle Roller Bearing with Two Open Ends 35x42x20mm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: TLA3520Z RHNA354220
In stock
Price Break
10+
CHF 8.30
19+
CHF 7.83
29+
CHF 7.74
39+
CHF 7.64
49+
CHF 7.55
74+
CHF 7.46
99+
CHF 6.99
199+
CHF 6.90
249+
CHF 6.80
499+
CHF 6.71
999+
CHF 6.52
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA3520Z RHNA354220
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 42mm |
| C | 20mm |
| Dynamic load | 22900 N |
| Static load | 46500 N |
| Fatigue load limit Pu | 5600 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 8000 rpm |
| r1r2 min | 0.8mm |
| Da max | 37mm |
| ra max | 0.8mm |
| Inner ring | IR30x35x20.5 |
| Seal | G/SD35x42x4 |
| Weight | 44 g |
