SKU: HK4012-NTN

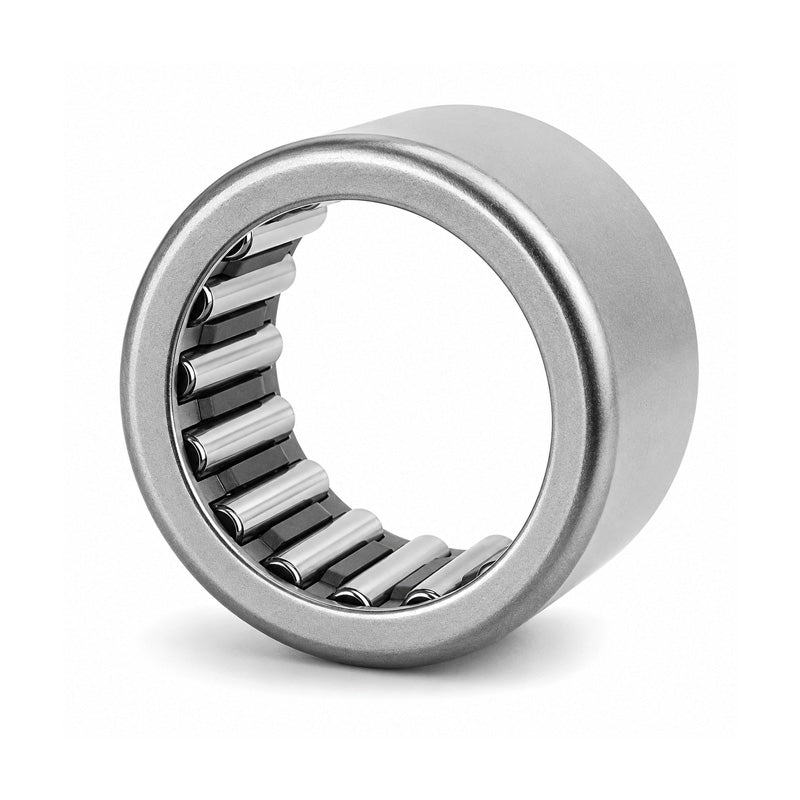

NTN HK4012 Drawn Cup Needle Roller Bearing with Open End 40x47x12mm

NTN HK4012 Drawn Cup Needle Roller Bearing with Open End 40x47x12mm
Regular price CHF 8.00 ex VAT
Regular price Sale price CHF 8.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 5.90
4+ CHF 5.57
9+ CHF 5.50
19+ CHF 5.44
49+ CHF 5.37
99+ CHF 5.30
499+ CHF 4.97
999+ CHF 4.91
1999+ CHF 4.84
2999+ CHF 4.77
4999+ CHF 4.64
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 40mm
D - Outside diameter 47mm
C - Width of bearing, drawn cup or outer ring 12mm
Lubrication hole on outer ring? No
Inner ring reference IR35X40X12.5
Cr - Dynamic load rating 15.1 kN
C0r - Static load rating 26 kN
N - Grease lubrication limit speed 4000 tr/min
N - Oil lubrication limit speed 6000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
