SKU: HK5020-NTN

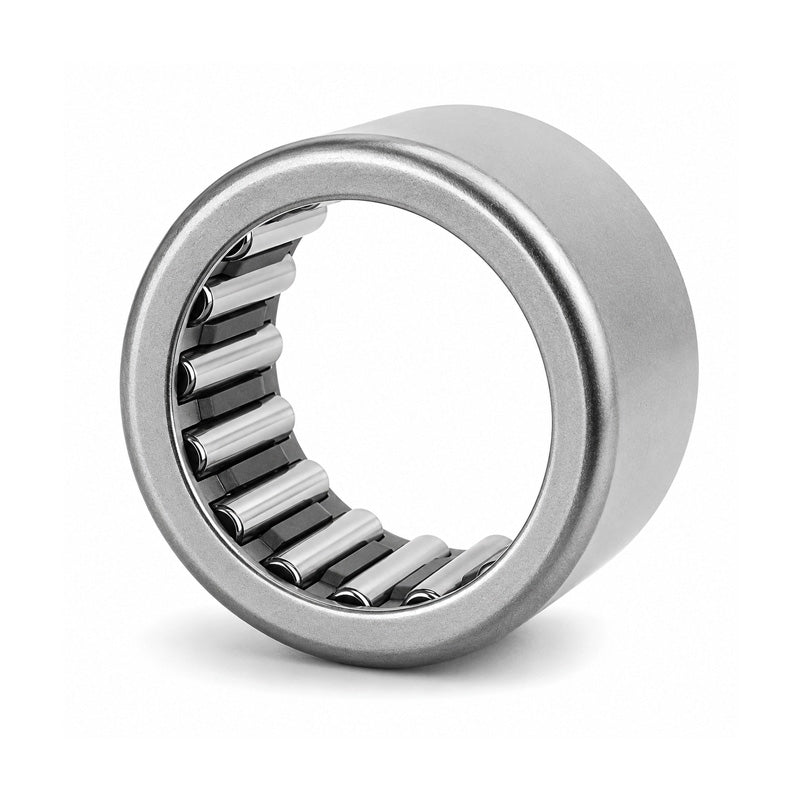

NTN HK5020 Drawn Cup Needle Roller Bearing with Open End 50x58x20mm

NTN HK5020 Drawn Cup Needle Roller Bearing with Open End 50x58x20mm
Regular price CHF 11.00 ex VAT
Regular price Sale price CHF 11.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 8.73
4+ CHF 8.24
9+ CHF 8.14
19+ CHF 8.04
49+ CHF 7.95
99+ CHF 7.85
499+ CHF 7.36
999+ CHF 7.26
1999+ CHF 7.16
2999+ CHF 7.06
4999+ CHF 6.87
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 50mm
D - Outside diameter 58mm
C - Width of bearing, drawn cup or outer ring 20mm
Lubrication hole on outer ring? No
Inner ring reference IR40X50X22
Cr - Dynamic load rating 31.5 kN
C0r - Static load rating 63 kN
N - Grease lubrication limit speed 3200 tr/min
N - Oil lubrication limit speed 5800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
