SKU: HM3060-MB
HM3060 Locknut with Metric Trapezoidal Threads 296x360x42mm
HM3060 Locknut with Metric Trapezoidal Threads 296x360x42mm
Regular price
CHF 799.00
ex VAT
Regular price
Sale price
CHF 799.00
ex VAT
In stock
Price Break
10+
CHF 636.07
19+
CHF 600.33
29+
CHF 593.18
39+
CHF 586.04
49+
CHF 578.89
74+
CHF 571.74
99+
CHF 536.01
199+
CHF 528.86
249+
CHF 521.72
499+
CHF 514.57
999+
CHF 500.28
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- M300x4

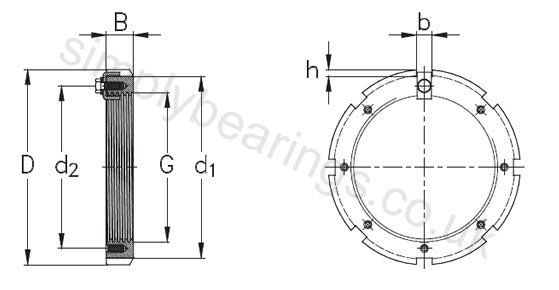

Technical
Technical
| Thread Pitch G | Tr300x4 |
|---|---|
| d1 | 336mm |
| d2 | 316mm |
| D | 360mm |
| B | 42mm |
| b | 24mm |
| h | 12mm |
| Weight | 8.35 kg |
Reviews
Reviews
