SKF HM3072 Lock Nut (Locking Clip Type) M360x5mm
SKF HM3072 Lock Nut (Locking Clip Type) M360x5mm
Regular price
CHF 937.00
ex VAT
Regular price
Sale price
CHF 937.00
ex VAT
In stock
Price Break
10+
CHF 746.20
19+
CHF 704.28
29+
CHF 695.89
39+
CHF 687.51
49+
CHF 679.13
74+
CHF 670.74
99+
CHF 628.82
199+
CHF 620.44
249+
CHF 612.05
499+
CHF 603.67
999+
CHF 586.90
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M360x5
Technical
Technical

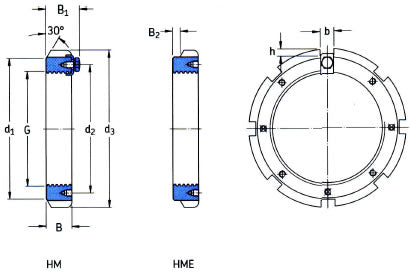

| d1 | 394mm |
|---|---|
| d2 | 375mm |
| d3 | 420mm |
| B | 45mm |
| B1 | 58mm |
| b | 28mm |
| h | 13mm |
| Weight | 11.5 kg |
| G | M360x5 |
| Designation | HM3072 |
| Lock nut | MS3072 |
| Spanner | TMFN 6480 |
