SKU: HM3164-SKF

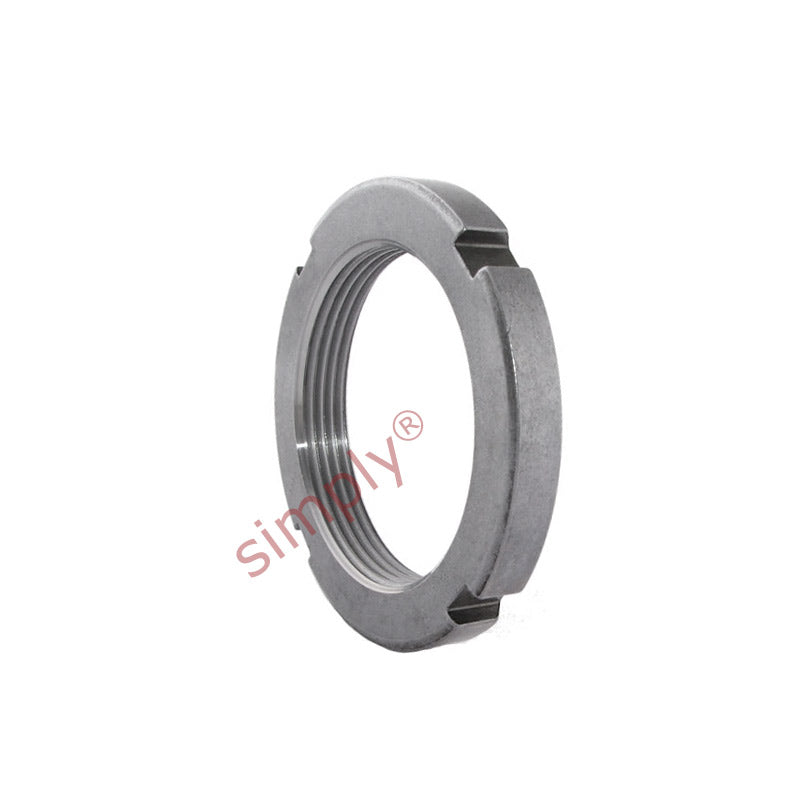

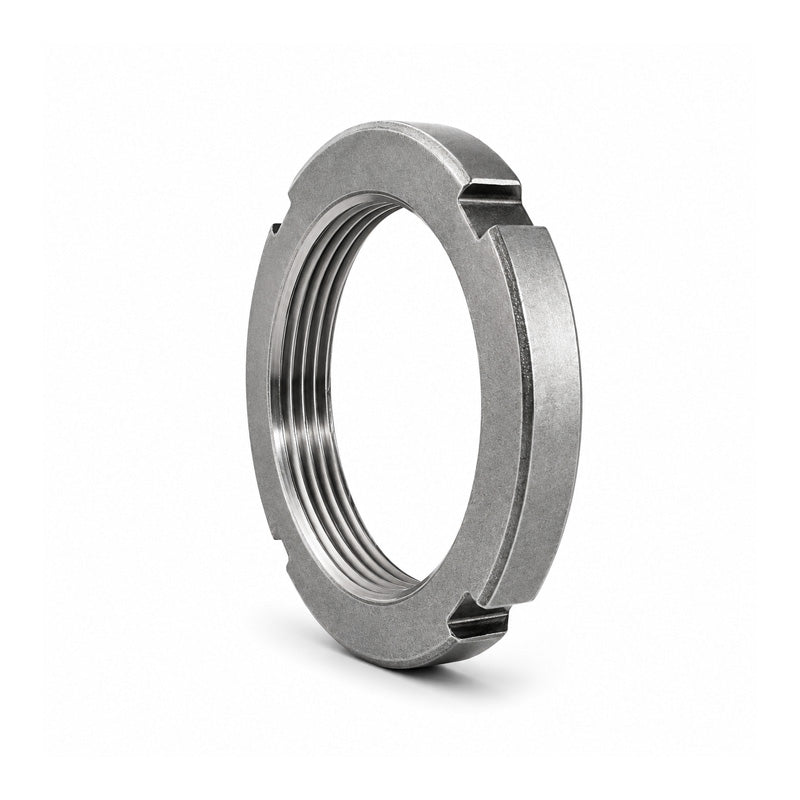

SKF HM3164 Lock Nut (Locking Clip Type) M320x5mm
SKF HM3164 Lock Nut (Locking Clip Type) M320x5mm
Regular price
CHF 960.63
ex VAT
Regular price
Sale price
CHF 960.63
ex VAT
In stock
Price Break
10+
CHF 854.96
19+
CHF 806.93
29+
CHF 797.32
39+
CHF 787.72
49+
CHF 778.11
74+
CHF 768.50
99+
CHF 720.47
199+
CHF 710.87
249+
CHF 701.26
499+
CHF 691.65
999+
CHF 672.44
Couldn't load pickup availability
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M320x5
Technical
Technical
| d1 | 360mm |
|---|---|
| d2 | 346mm |
| d3 | 400mm |
| B | 42mm |
| B1 | 56mm |
| b | 24mm |
| h | 12mm |
| Weight | 13 kg |
| G | M320x5 |
| Designation | HM3164 |
| Lock nut | MS3164 |
| Spanner | TMFN 5264 |
