SKU: HM803146/2/110/2/QCL7C-SKF

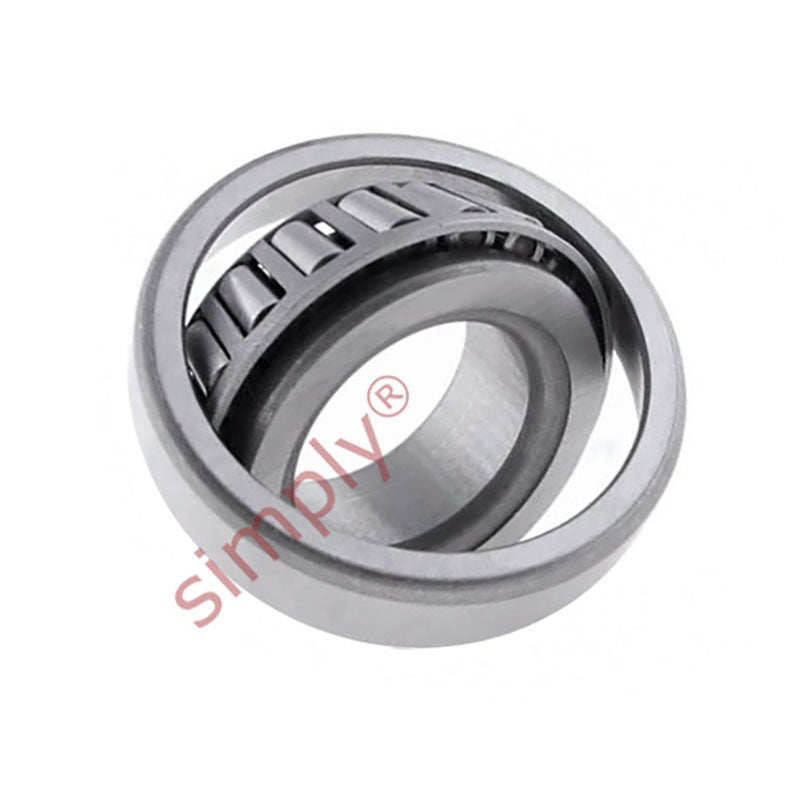

SKF HM803146/2/110/2/QCL7C Imperial Taper Roller Bearing 1.625x3.5x1.1875 inches
SKF HM803146/2/110/2/QCL7C Imperial Taper Roller Bearing 1.625x3.5x1.1875 inches
Regular price
CHF 60.00
ex VAT
Regular price
Sale price
CHF 60.00
ex VAT
In stock
Price Break
10+
CHF 47.70
19+
CHF 45.02
29+
CHF 44.48
39+
CHF 43.94
49+
CHF 43.41
74+
CHF 42.87
99+
CHF 40.19
199+
CHF 39.66
249+
CHF 39.12
499+
CHF 38.58
999+
CHF 37.51
Share this product
Description
Description
|

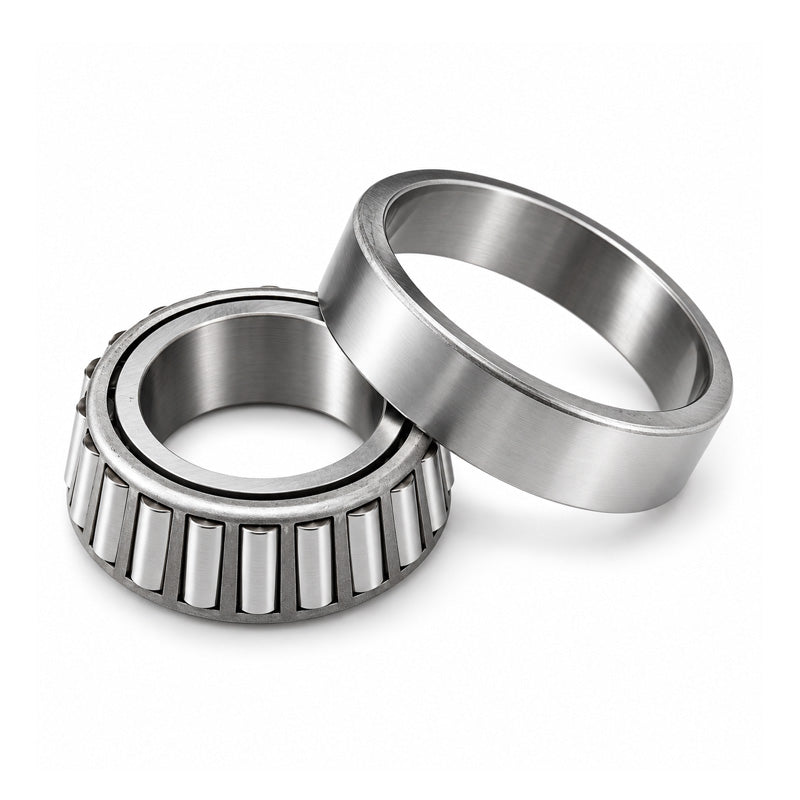

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Width:
- 30.16mm = 1.187 (1-3/16) inch
- Seals / Shields:
- None
Technical
Technical
| d | 41.275mm |
|---|---|
| D | 88.9mm |
| T | 30.162mm |
| Dynamic load | 95.2 kN |
| Static load | 127 kN |
| Fatigue load limit Pu | 14.6 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.9 kg |
| d1 | 68.9mm |
| B | 29.37mm |
| C | 23.02mm |
| r1r2 min | 3.5mm |
| r3r4 min | 3.3mm |
| a | 26mm |
| da max | 53mm |
| db min | 52.5mm |
| Da min | 70mm |
| Da max | 78mm |
| Db min | 84mm |
| Ca min | 4mm |
| Cb min | 7mm |
| ra max | 3mm |
| rb max | 3mm |
| Calculation factor e | 0.54 |
| Calculation factor Y | 1.1 |
| Calculation factor Y0 | 0.6 |
