SKU: HM88649/HM88611AS-TIM

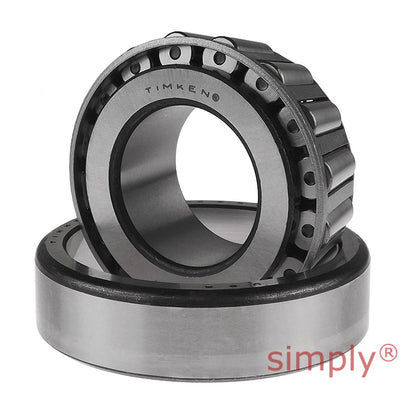

Timken HM88649/HM88611AS TS Single-Row Taper Roller Bearing 1.375x2.8593x1 inch
Timken HM88649/HM88611AS TS Single-Row Taper Roller Bearing 1.375x2.8593x1 inch
Regular price
CHF 83.92
ex VAT
Regular price
Sale price
CHF 83.92
ex VAT
In stock
Price Break
10+
CHF 74.69
19+
CHF 70.49
29+
CHF 69.65
39+
CHF 68.81
49+
CHF 67.98
74+
CHF 67.14
99+
CHF 62.94
199+
CHF 62.10
249+
CHF 61.26
499+
CHF 60.42
999+
CHF 58.74
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 72.63mm = 2.859 (2-55/64) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| d | 34.925mm = 1.375 inch |
|---|---|
| D | 72.626mm = 2.8593 inch |
| T | 25.4mm = 1 inch |
| Dynamic (1) C1 | 71100N |
| Factors (5) e | 0.55 |
| Factors (5) Y | 1.1 |
| Dynamic (2) C90 | 18400N |
| Dynamic (2) Ca90 | 17200N |
| Factors (5) K | 1.07 |
| Static C0 | 94200N |
| Bearing B | 25.4mm = 1 inch |
| Bearing C | 19.842mm = 0.7812 inch |
| Bearing a(3) | -4.6mm = -0.18 inch |
| Shaft max shaft fillet radius R(4) | 2.3mm = 0.09 inch |
| Shaft backing shoulder diameter da | 42.5mm = 1.68 inch |
| Shaft backing shoulder diameter db | 48.5mm = 1.91 inch |
| Housing backing shoulder diameter r(4) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Da | 69mm = 2.72 inch |
| Housing backing shoulder diameter Db | 59mm = 2.32 inch |
| Cage Aa | 1.7mm = 0.07 inch |
| Cage Ab | 1.7mm = 0.07 inch |
| G1 | 23.4 |
| G2 | 10.9 |
| Cg | 0.0822 |
