SKU: HMK1513L/3AS-NTN

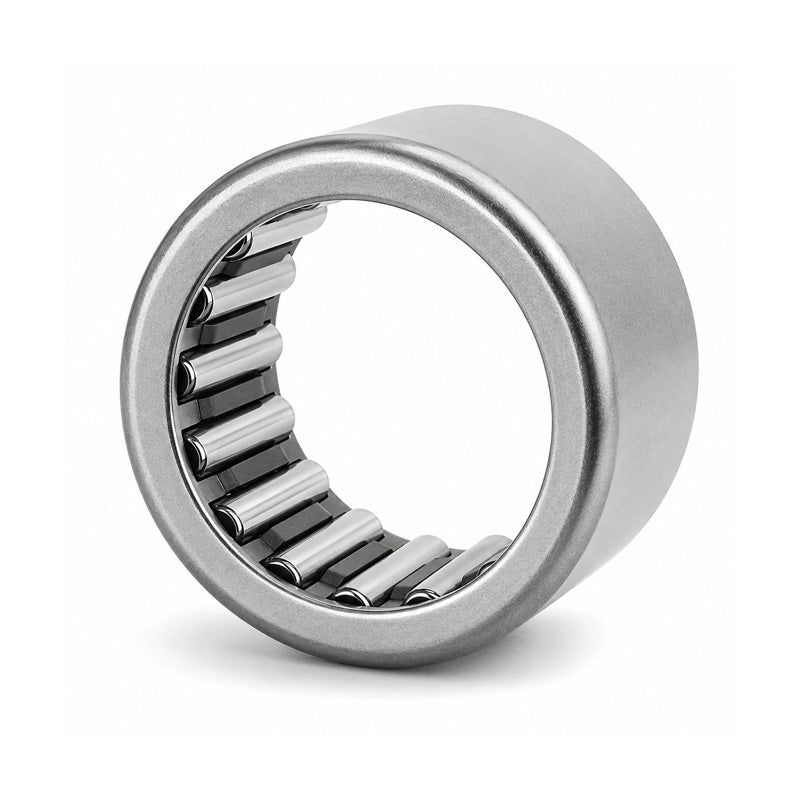

NTN HMK1513L/3AS Drawn Cup Needle Roller Bearing with Open End 15x22x13mm - Allow 2-3 Days
NTN HMK1513L/3AS Drawn Cup Needle Roller Bearing with Open End 15x22x13mm - Allow 2-3 Days
Regular price
CHF 6.19
ex VAT
Regular price
Sale price
CHF 6.19
ex VAT
In stock
Price Break
5+
CHF 6.13
10+
CHF 5.88
20+
CHF 5.76
50+
CHF 5.57
100+
CHF 5.45
500+
CHF 5.14
1000+
CHF 4.33
Couldn't load pickup availability
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 22mm
- Width:
- 13mm
Technical
Technical
| Fw - Inside diameter | 15mm |
|---|---|
| D - Outside diameter | 22mm |
| C1 - Width of Drawn cup L | 13mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR12X15X16 |
| Cr - Dynamic load rating | 6.1 kN |
| C0r - Static load rating | 6 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
