SKU: HMK2920-NTN

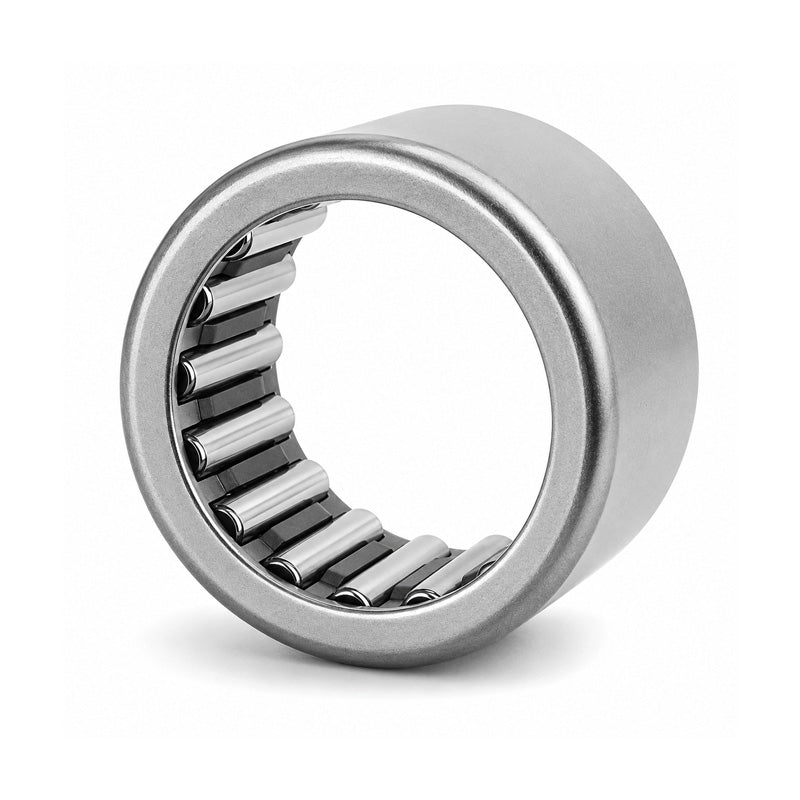

NTN HMK2920 Drawn Cup Needle Roller Bearing with Open End 29x38x20mm - Allow 2-3 Days

NTN HMK2920 Drawn Cup Needle Roller Bearing with Open End 29x38x20mm - Allow 2-3 Days
Regular price CHF 15.00 ex VAT
Regular price Sale price CHF 15.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 13.14
4+ CHF 12.61
9+ CHF 12.34
19+ CHF 11.94
49+ CHF 11.68
99+ CHF 11.01
499+ CHF 9.29
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 29mm
D - Outside diameter 38mm
C - Width of bearing, drawn cup or outer ring 20mm
Lubrication hole on outer ring? No
Cr - Dynamic load rating 24.6 kN
C0r - Static load rating 35 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
