SKU: HMV-12-EBF-HN-SNR

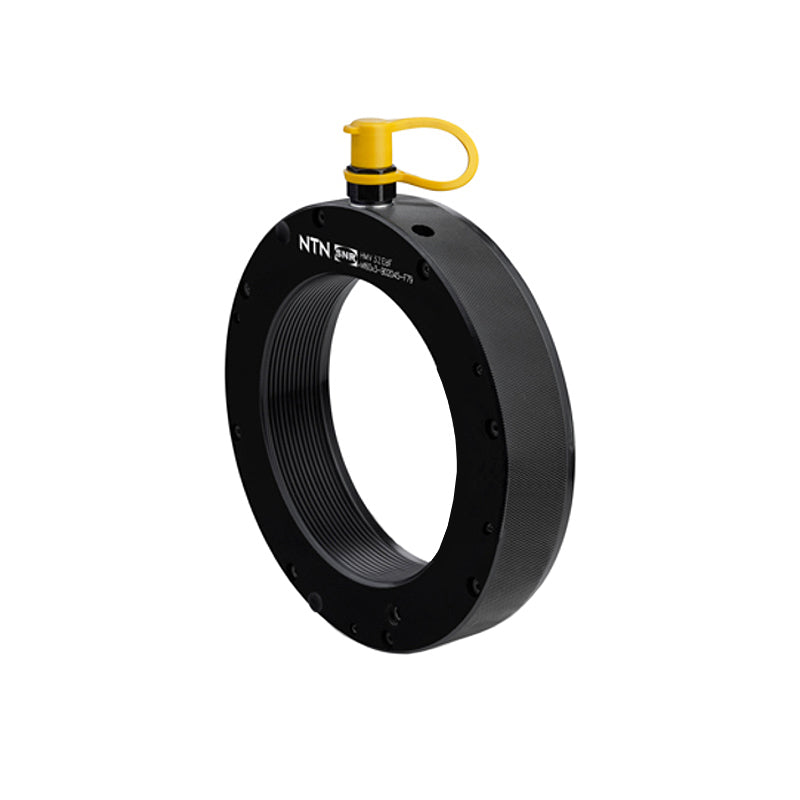

SNR HMV12 Metric Hydraulic Nut with M60x2 Thread - Allow 2-3 Days
SNR HMV12 Metric Hydraulic Nut with M60x2 Thread - Allow 2-3 Days
Regular price
CHF 1,029.00
ex VAT
Regular price
Sale price
CHF 1,029.00
ex VAT
In stock
Price Break
3+
CHF 819.10
5+
CHF 773.08
9+
CHF 763.88
19+
CHF 754.67
49+
CHF 745.47
74+
CHF 736.27
99+
CHF 690.25
199+
CHF 681.05
249+
CHF 671.84
499+
CHF 662.64
999+
CHF 644.23
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M60x2
- Inside Diameter:
- 60.5mm
- Outside Diameter:
- 125mm
- Width:
- 43mm
- Flange Width:
- 5mm
Technical
Technical
| HMV | HMV12 |
|---|---|
| Thread G | M60x2 |
| Outside Diameter D | 125mm |
| Total Width B | 43mm |
| Piston Diameter max. d2 | 121mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 5mm |
| Body Width B2 | 38mm |
| Diameter d1 | 60.5mm |
| Piston Surface Area | 3250mm2 |
| Weight | 3kg |
