SKU: HMV-126-EBF-HN-SNR

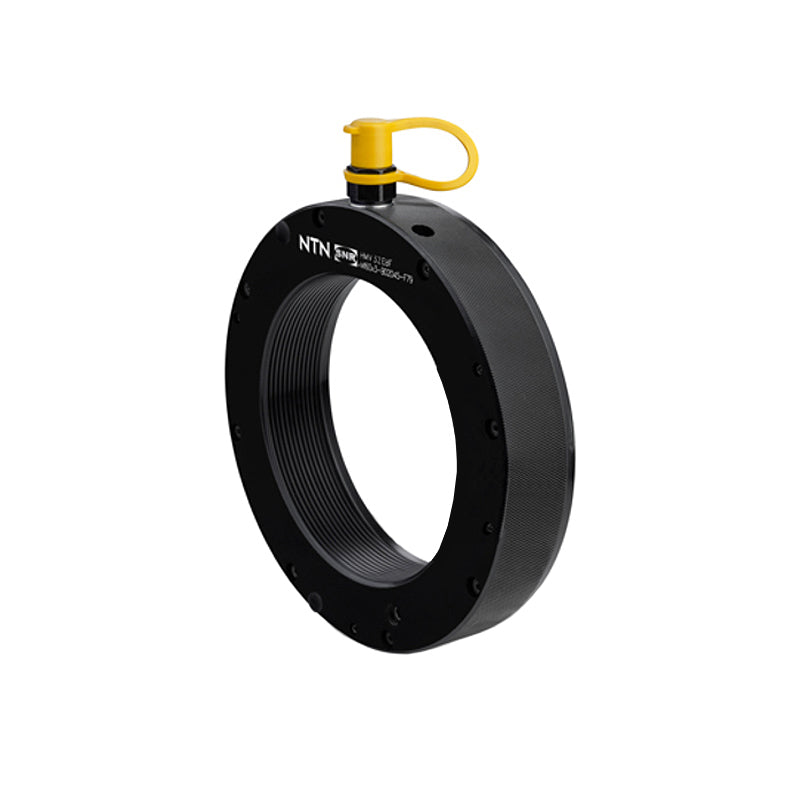

SNR HMV126 Metric Hydraulic Nut with Tr630x6 Thread - Allow 2-3 Days
SNR HMV126 Metric Hydraulic Nut with Tr630x6 Thread - Allow 2-3 Days
Regular price
CHF 8,421.00
ex VAT
Regular price
Sale price
CHF 8,421.00
ex VAT
In stock
Price Break
3+
CHF 6,706.26
5+
CHF 6,329.51
9+
CHF 6,254.16
19+
CHF 6,178.80
49+
CHF 6,103.45
74+
CHF 6,028.10
99+
CHF 5,651.35
199+
CHF 5,575.99
249+
CHF 5,500.64
499+
CHF 5,425.29
999+
CHF 5,274.59
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr630x6
- Inside Diameter:
- 632mm
- Outside Diameter:
- 782mm
- Width:
- 88mm
- Flange Width:
- 14mm
Technical
Technical
| HMV | HMV126 |
|---|---|
| Thread G | Tr630x6 |
| Outside Diameter D | 782mm |
| Total Width B | 88mm |
| Piston Diameter max. d2 | 776mm |
| Permitted Piston Stroke | 23mm |
| Flange Width B1 | 14mm |
| Body Width B2 | 74mm |
| Diameter d1 | 632mm |
| Piston Surface Area | 72850mm2 |
| Weight | 110.2kg |
