SKU: HMV-25-EBF-HN-SNR

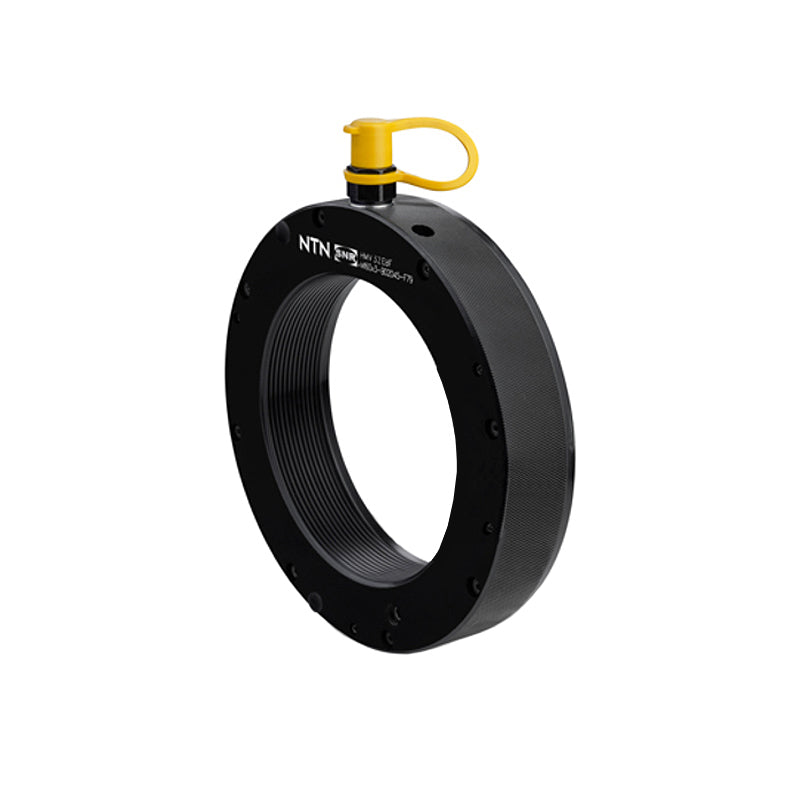

SNR HMV25 Metric Hydraulic Nut with M125x2 Thread - Allow 2-3 Days
SNR HMV25 Metric Hydraulic Nut with M125x2 Thread - Allow 2-3 Days
Regular price
CHF 1,328.39
ex VAT
Regular price
Sale price
CHF 1,328.39
ex VAT
In stock
Price Break
10+
CHF 1,182.27
19+
CHF 1,115.85
29+
CHF 1,102.56
39+
CHF 1,089.28
49+
CHF 1,076.00
74+
CHF 1,062.71
99+
CHF 996.29
199+
CHF 983.01
249+
CHF 969.72
499+
CHF 956.44
999+
CHF 929.87
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M125x2
- Inside Diameter:
- 125.5mm
- Outside Diameter:
- 192mm
- Width:
- 44mm
- Flange Width:
- 6mm
Technical
Technical
| HMV | HMV25 |
|---|---|
| Thread G | M125x2 |
| Outside Diameter D | 192mm |
| Total Width B | 44mm |
| Piston Diameter max. d2 | 188mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 6mm |
| Body Width B2 | 38mm |
| Diameter d1 | 125.5mm |
| Piston Surface Area | 6350mm2 |
| Weight | 5.6kg |
