SKU: HMV-52-EBF-HN-SNR

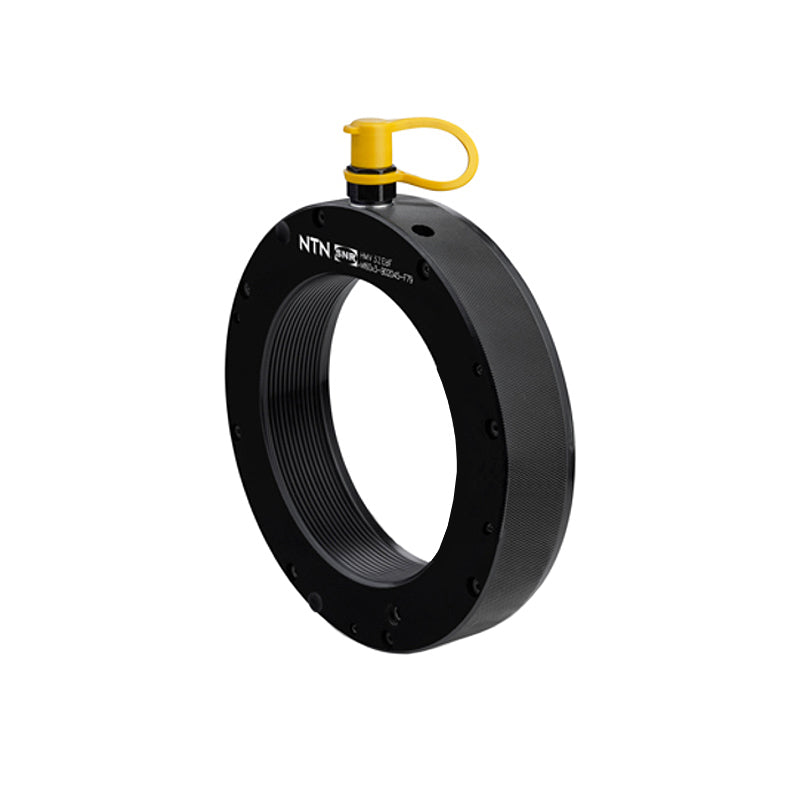

SNR HMV52 Metric Hydraulic Nut with Tr260x4 Thread - Allow 2-3 Days
SNR HMV52 Metric Hydraulic Nut with Tr260x4 Thread - Allow 2-3 Days
Regular price
CHF 2,848.00
ex VAT
Regular price
Sale price
CHF 2,848.00
ex VAT
In stock
Price Break
3+
CHF 2,270.25
5+
CHF 2,142.71
9+
CHF 2,117.20
19+
CHF 2,091.69
49+
CHF 2,066.19
74+
CHF 2,040.68
99+
CHF 1,913.13
199+
CHF 1,887.63
249+
CHF 1,862.12
499+
CHF 1,836.61
999+
CHF 1,785.59
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr260x4
- Inside Diameter:
- 262mm
- Outside Diameter:
- 356mm
- Width:
- 56mm
- Flange Width:
- 9mm
Technical
Technical
| HMV | HMV52 |
|---|---|
| Thread G | Tr260x4 |
| Outside Diameter D | 356mm |
| Total Width B | 56mm |
| Piston Diameter max. d2 | 352mm |
| Permitted Piston Stroke | 11mm |
| Flange Width B1 | 9mm |
| Body Width B2 | 47mm |
| Diameter d1 | 262mm |
| Piston Surface Area | 19150mm2 |
| Weight | 19.2kg |
