SKU: HN1312-EU

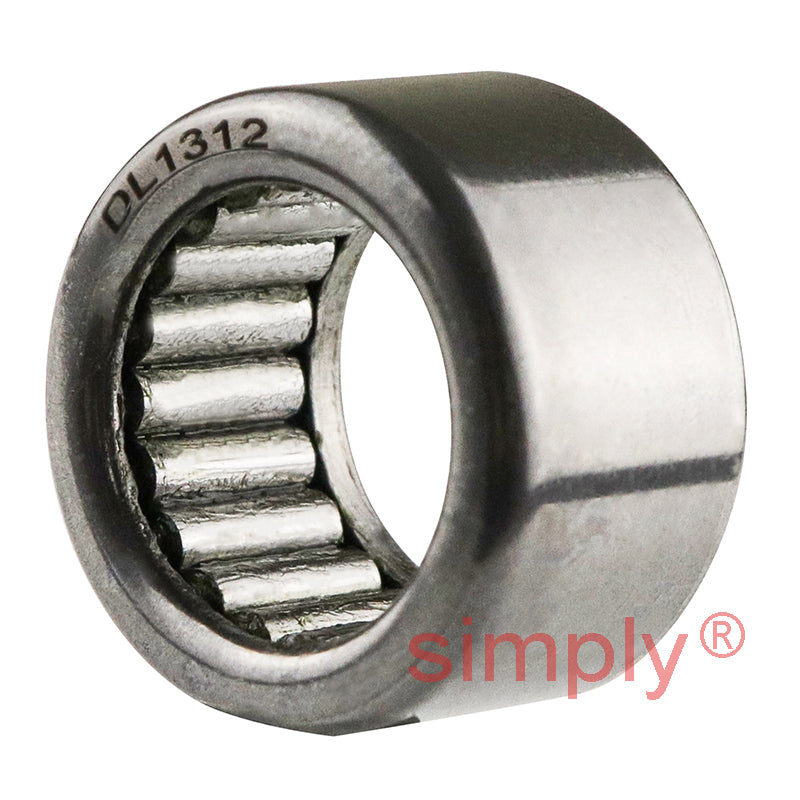

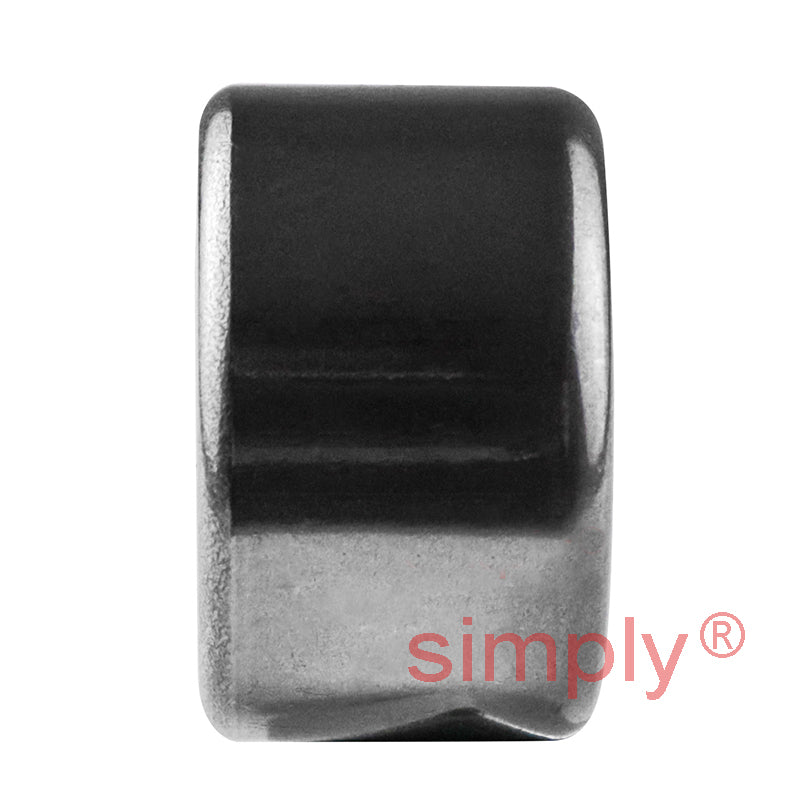

Budget HN1312 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 13x19x12mm
Budget HN1312 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 13x19x12mm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: HJ1312 HK1312V DL1312
In stock
Price Break
10+
CHF 6.38
19+
CHF 6.03
29+
CHF 5.95
39+
CHF 5.88
49+
CHF 5.81
74+
CHF 5.74
99+
CHF 5.38
199+
CHF 5.31
249+
CHF 5.24
499+
CHF 5.16
999+
CHF 5.02
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 13mm
- Outside Diameter:
- 19mm
- Width:
- 12mm
Technical
Technical
| Bore | 13mm |
|---|---|
| Outside diameter | 19mm |
| Width | 12mm |
| Radius r min | 0.6mm |
| Dynamic Load (kN) | 8.5 |
| Static Load (kN) | 14.2 |
| Speed rpm | 8100 |
| Weight | 0.011 kg |
