SKU: HN1816-EU

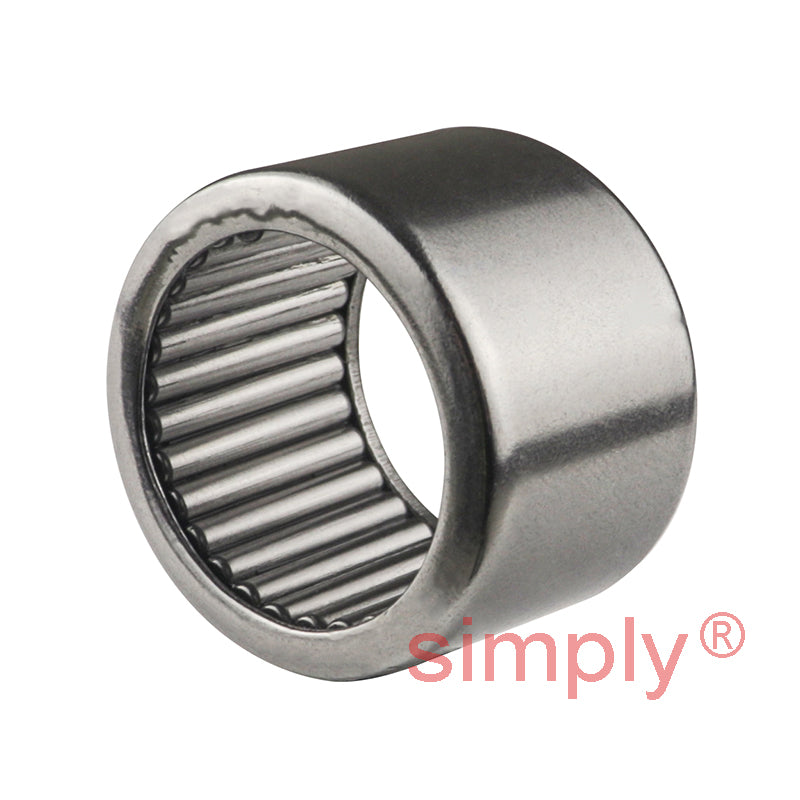

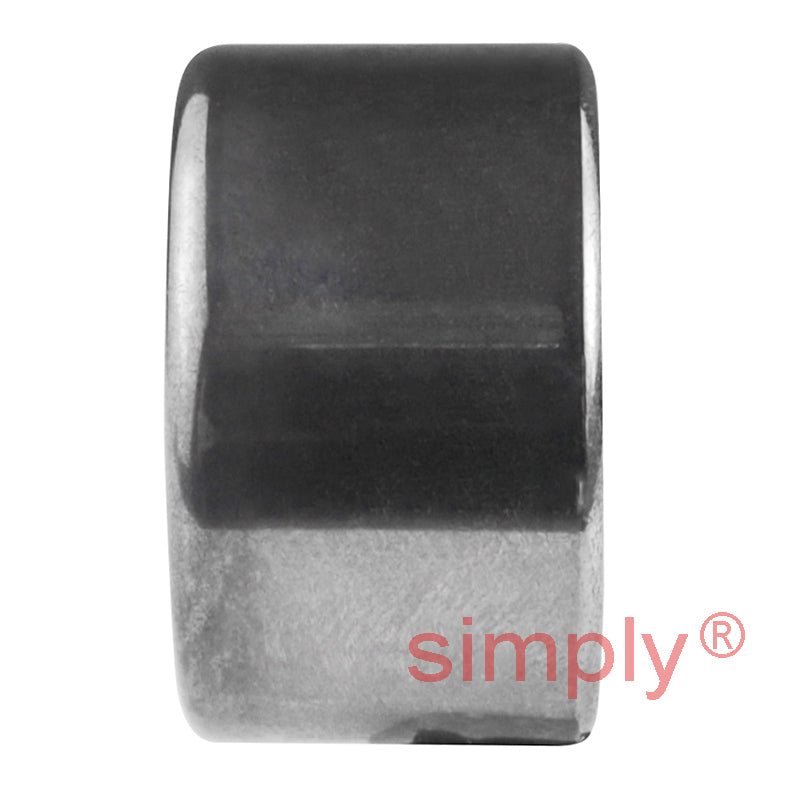

Budget HN1816 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 18x24x16mm
Budget HN1816 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 18x24x16mm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: HJ1816 HK1816V DL1816
Low stock
Price Break
10+
CHF 7.14
19+
CHF 6.74
29+
CHF 6.66
39+
CHF 6.58
49+
CHF 6.50
74+
CHF 6.42
99+
CHF 6.02
199+
CHF 5.93
249+
CHF 5.85
499+
CHF 5.77
999+
CHF 5.61
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
Equivalent: HJ1816 HK1816V DL1816
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| Bore | 18mm |
|---|---|
| Outside diameter | 24mm |
| Width | 16mm |
| Radius r min | 0.8mm |
| Dynamic Load (kN) | 13.6 |
| Static Load (kN) | 26 |
| Speed rpm | 6000 |
| Weight | 0.02 kg |
