SKU: HN253320-EU

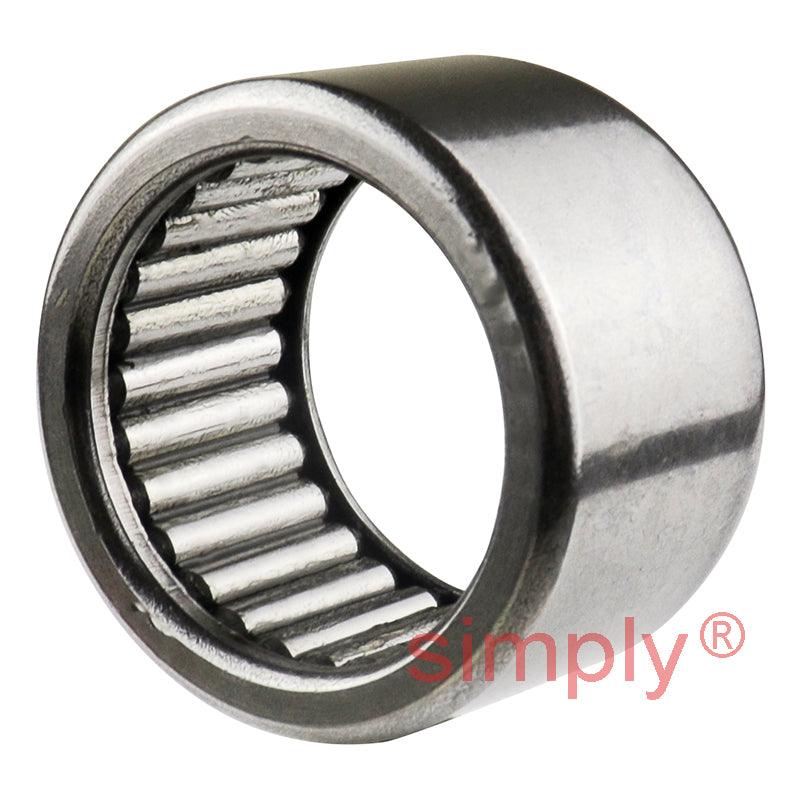

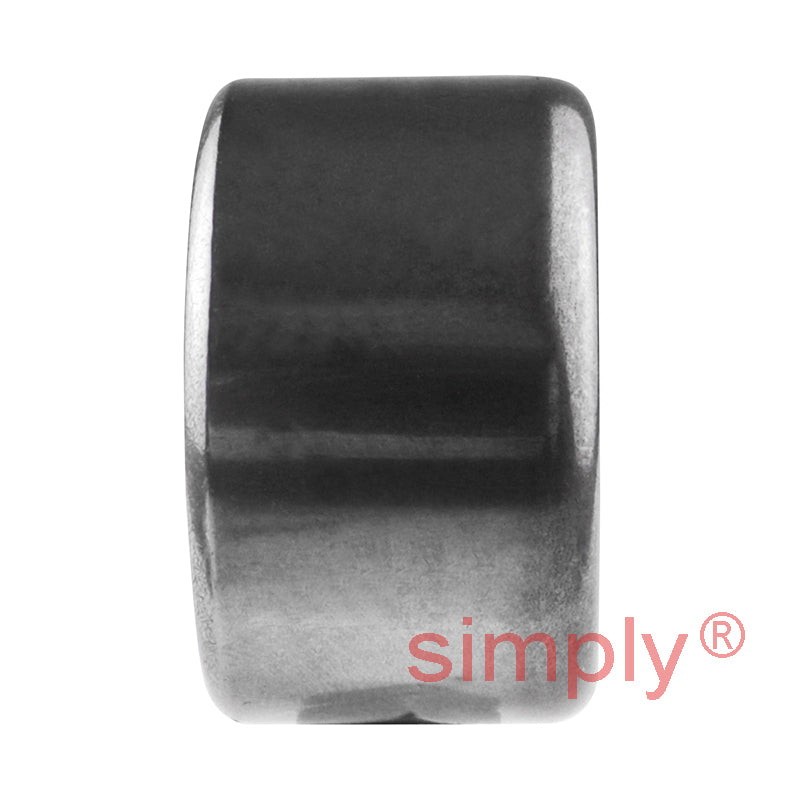

Budget HN253320 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 25x33x20mm
Budget HN253320 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 25x33x20mm
Regular price
CHF 14.00
ex VAT
Regular price
Sale price
CHF 14.00
ex VAT
Equivalent to: HJ2520 HK2520V
In stock
Price Break
10+
CHF 10.41
19+
CHF 9.83
29+
CHF 9.71
39+
CHF 9.59
49+
CHF 9.48
74+
CHF 9.36
99+
CHF 8.78
199+
CHF 8.66
249+
CHF 8.54
499+
CHF 8.42
999+
CHF 8.19
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 33mm
- Width:
- 20mm
Technical
Technical
| Bore | 25mm |
|---|---|
| Outside diameter | 33mm |
| Width | 20mm |
| Radius r min | 0.8mm |
| Dynamic Load (kN) | 22.4 |
| Static Load (kN) | 47.2 |
| Speed rpm | 4350 |
| Weight | 0.0386 kg |
