SKU: HP144-8M-30

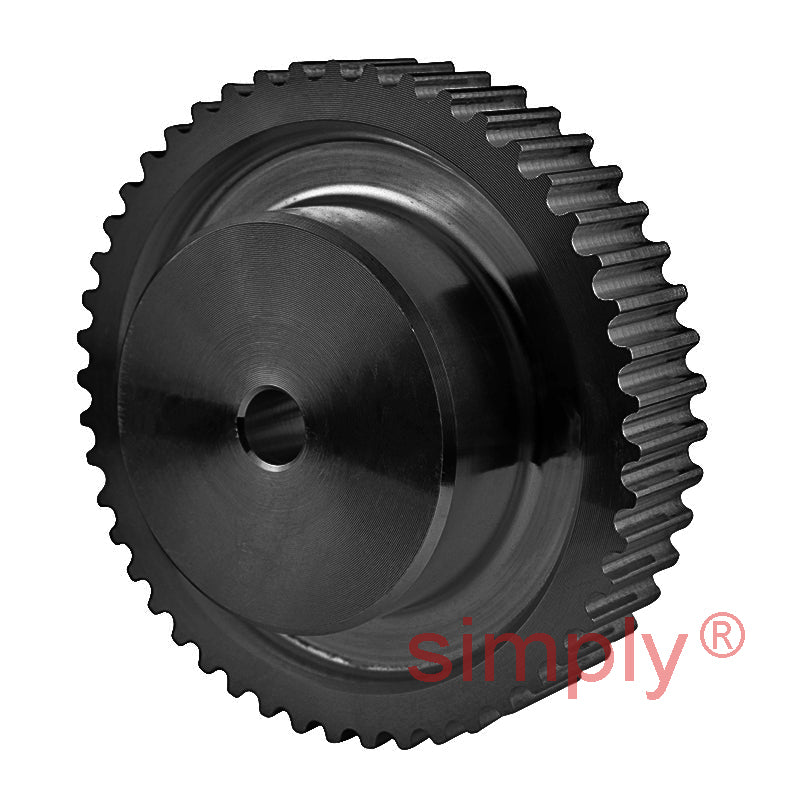

P144-8M-30 - 8mm Pitch 144 Tooth Flangeless HTD Type Cast Iron Pilot Bore Timing Pulley for 30mm Wide Belts
P144-8M-30 - 8mm Pitch 144 Tooth Flangeless HTD Type Cast Iron Pilot Bore Timing Pulley for 30mm Wide Belts
Regular price
CHF 135.54
ex VAT
Regular price
Sale price
CHF 135.54
ex VAT
Equivalent to: 1448M30
In stock
Price Break
10+
CHF 120.63
19+
CHF 113.85
29+
CHF 112.50
39+
CHF 111.14
49+
CHF 109.79
74+
CHF 108.43
99+
CHF 101.66
199+
CHF 100.30
249+
CHF 98.94
499+
CHF 97.59
999+
CHF 94.88
Couldn't load pickup availability
Description
Description
HTD Pilot Bore Timing Pulley: High Torque Drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Equivalent: 1448M30
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 144
- Pitch:
- 8mm
- Item Type:
- Pilot Bore Pulley
- Maximum Belt Width:
- 30mm
Technical
Technical
| d Pilot Bore (Nominal) | 20mm |
|---|---|
| Pitch | 8mm |
| Belt Width | 30mm |
| Dp | 366.69mm |
| De | 365.32mm |
| Dm | 100mm |
| F | 38mm |
| L | 48mm |
| Number of Teeth | 144 |
| Material | Cast Iron |
| Type | 4 Pilot Bore |
