SKU: HP22-8M-50F

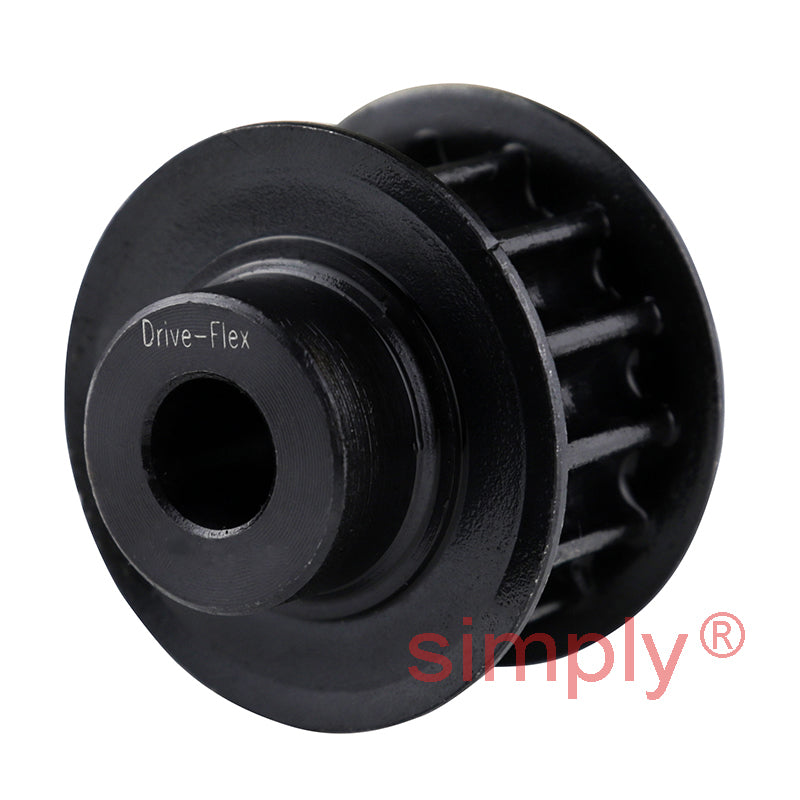

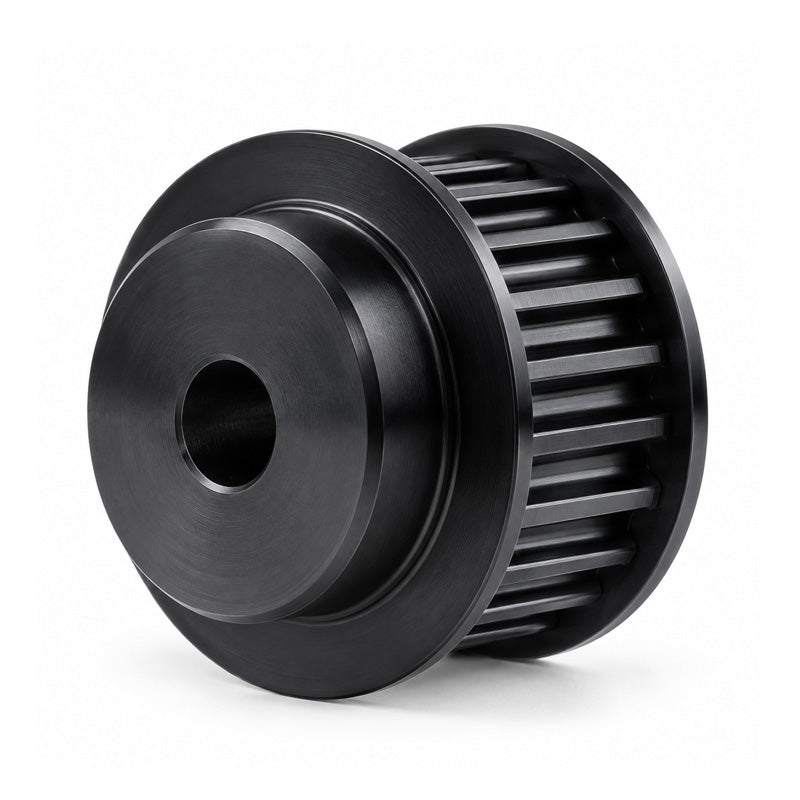

P22-8M-50F - 8mm Pitch 22 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 50mm Wide Belts
P22-8M-50F - 8mm Pitch 22 Tooth Flanged HTD Type Steel Pilot Bore Timing Pulley for 50mm Wide Belts
Regular price
CHF 19.34
ex VAT
Regular price
Sale price
CHF 19.34
ex VAT
Equivalent to: 228M50F
In stock
Price Break
10+
CHF 17.21
19+
CHF 16.25
29+
CHF 16.05
39+
CHF 15.86
49+
CHF 15.67
74+
CHF 15.47
99+
CHF 14.51
199+
CHF 14.31
249+
CHF 14.12
499+
CHF 13.92
999+
CHF 13.54
Couldn't load pickup availability
Description
Description
HTD Pilot Bore Timing Pulley: High Torque Drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Equivalent: 228M50F
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 22
- Pitch:
- 8mm
- Item Type:
- Pilot Bore Pulley
- Maximum Belt Width:
- 50mm
Technical
Technical
| --- | Pulley Dimensions |
|---|---|
| Pitch | 8mm |
| Number of Teeth | 22 |
| Type | 1F Pilot Bore |
| Dp | 56.02mm |
| De | 54.65mm |
| Df | 60mm |
| Dm | 43mm |
| F | 60mm |
| L | 70mm |
| Pilot Bore - nominal | 12mm |
| Weight | 0.5kg |
