SKU: HRC150B+HRC150B+HRC150I-MB

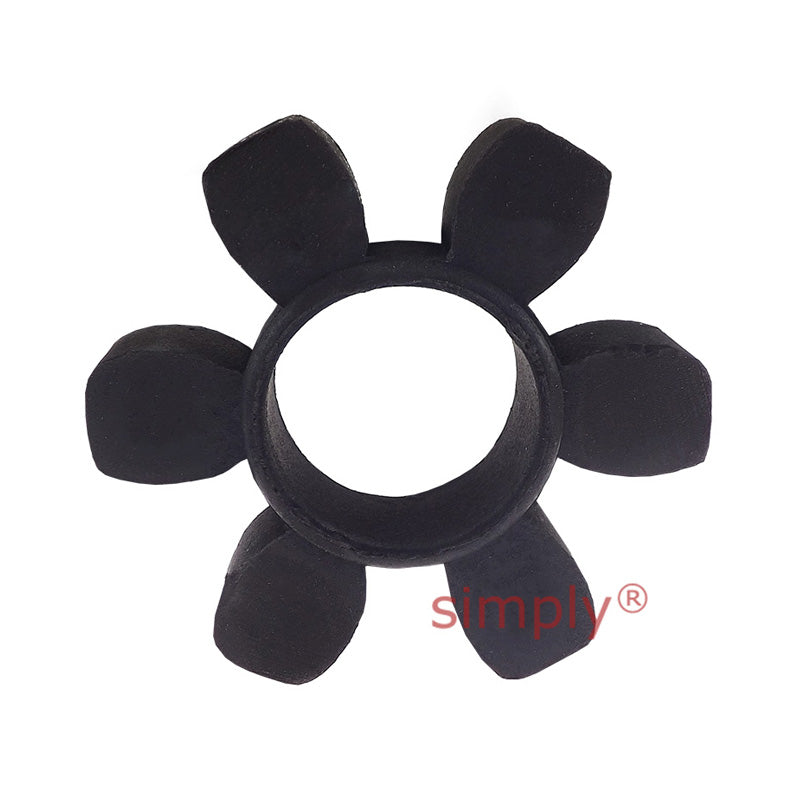

Major Brand HRC150B Coupling Assembly Pilot Bored Nominal 20mm Max Bore 70mm with Natural Rubber Insert
Major Brand HRC150B Coupling Assembly Pilot Bored Nominal 20mm Max Bore 70mm with Natural Rubber Insert
Regular price
CHF 78.00
ex VAT
Regular price
Sale price
CHF 78.00
ex VAT
Equivalent to: HRC150B HRC150B HRC150I DRC150B+DRC150B+DRC150I
In stock
Price Break
10+
CHF 61.34
19+
CHF 57.90
29+
CHF 57.21
39+
CHF 56.52
49+
CHF 55.83
74+
CHF 55.14
99+
CHF 51.69
199+
CHF 51.00
249+
CHF 50.31
499+
CHF 49.62
999+
CHF 48.25
Description
Description
Branded HRC Coupling Assembly Pilot Bored with Natural Rubber Insert: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.
Supplied as a complete coupling assembly. The assembly comprises of 2 coupling flanges and a matching insert. The coupling is the BB type which has pilot bores and will require machining to your application requirements.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
Equivalent: HRC150B HRC150B HRC150I DRC150B+DRC150B+DRC150I
- Brand / Quality:
- Major Brand - High Quality
Technical
Technical
| Nominal Torque | 600 Nm |
|---|---|
| Overall Diameter A | 150mm |
| Hub Diameter B | 115mm |
| Assembled Length F | 60.5mm |
| Insert Bore Dia E | 62mm |
| Insert Width G | 40.5mm |
| Parallel Misalignment | 0.4mm |
| Assembly Weight | 12.252kg |
| L width | 152.5mm<sup>3</sup> |
| B Type - Max Bore | 70mm |
| B Type - Pilot Bore | 20mm |
| B Type - Keyway Screw Size | M10mm |
| B Type - Shoulder Width D | 46mm |
| B Type - Hub Width C | 56.5mm |
| Max Power at 100 rpm | 6.28 kW |
| Max Power at 200 rpm | 12.6 kW |
| Max Power at 400 rpm | 25.1 kW |
| Max Power at 600 rpm | 37.7 kW |
| Max Power at 720 rpm | 45.2 kW |
| Max Power at 800 rpm | 50.3 kW |
| Max Power at 960 rpm | 60.3 kW |
| Max Power at 1200 rpm | 75.4 kW |
| Max Power at 1440 rpm | 90.5 kW |
| Max Power at 1600 rpm | 101 kW |
| Max Power at 1800 rpm | 113 kW |
| Max Power at 2000 rpm | 126 kW |
| Max Power at 2200 rpm | 138 kW |
| Max Power at 2400 rpm | 151 kW |
| Max Power at 2600 rpm | 163 kW |
| Max Power at 2880 rpm | 181 kW |
| Max Power at 3000 rpm | 188 kW |
| Max Power at 3600 rpm | 226 kW |
| Nominal Torque (Nm) | 600 Nm |
| Max Torque | 1500 Nm |
