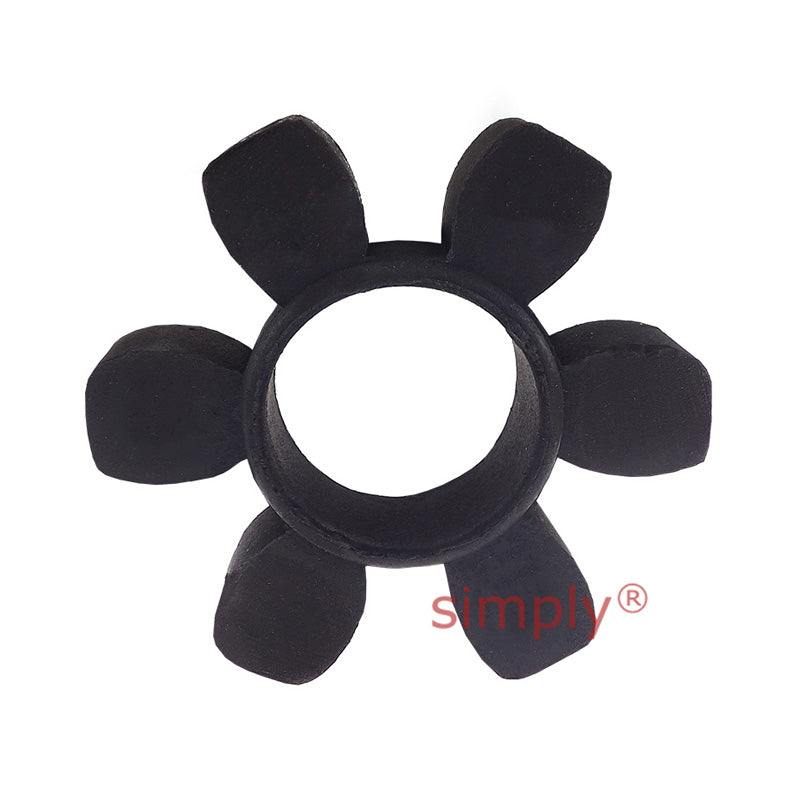

Major Brand HRC280F/HRC280B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 100mm / 4 inch with Natural Rubber Insert

Branded HRC Coupling Assembly Inner Facing Taper Bore/Pilot Bored with Natural Rubber Insert: These semi-elastic couplings are designed for general use purpose use and they permit quick and easy assembly by means for a tapered locking bush fixing. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 coupling flanges and a matching insert. The coupling is the F type where the taper bores are inner facing and a B type which has pilot bores and will require machining to your application requirements.

Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.

Brand / Quality:

Major Brand - High Quality

Max Bore:

100mm or 4 inch
