SKU: HT100-JUB

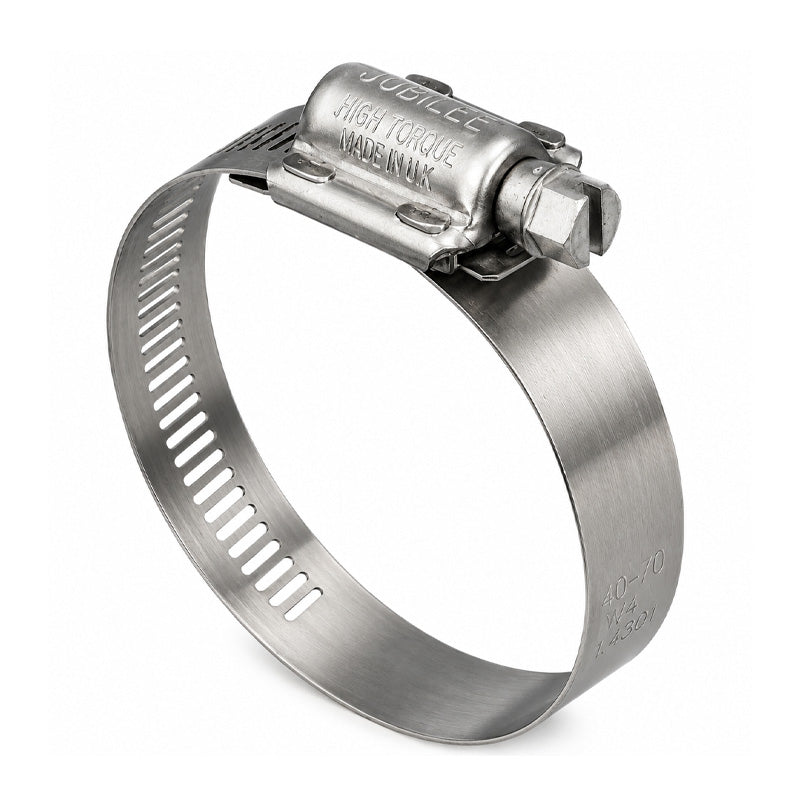

HT100 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 80mm-100mm Band Width 16mm
HT100 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 80mm-100mm Band Width 16mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Low stock
Price Break
3+
CHF 5.46
5+
CHF 5.24
9+
CHF 5.13
19+
CHF 4.97
49+
CHF 4.86
74+
CHF 4.58
99+
CHF 3.86
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
304 Stainless Steel High Torque Jubilee Clips: Jubilee® High Torque Clips are heavy duty and offer better sealing at lower torques. Suitable where clamp force needs to be high such as metal poles, plastic or reinforced hoses. Not suitable for soft hoses.
Benefits: High torque tightening.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 16mm
- Min Adjustment Range:
- 80mm
- Max Adjustment Range:
- 100mm
Technical
Technical
| Adjustment Range | 80mm - 100mm |
|---|---|
| Adjustment Range | 3-1/8 - 4 inch |
| Band Width (+/- 0.1) | 16mm |
| Band Thickness (+/- 0.1) | 0.7mm |
| Recommended Torque | 11.9Nm |
| Maximum Torque | 17Nm |
| Maximum Pressure | 66 Psi |
