SKU: HT320-JUB

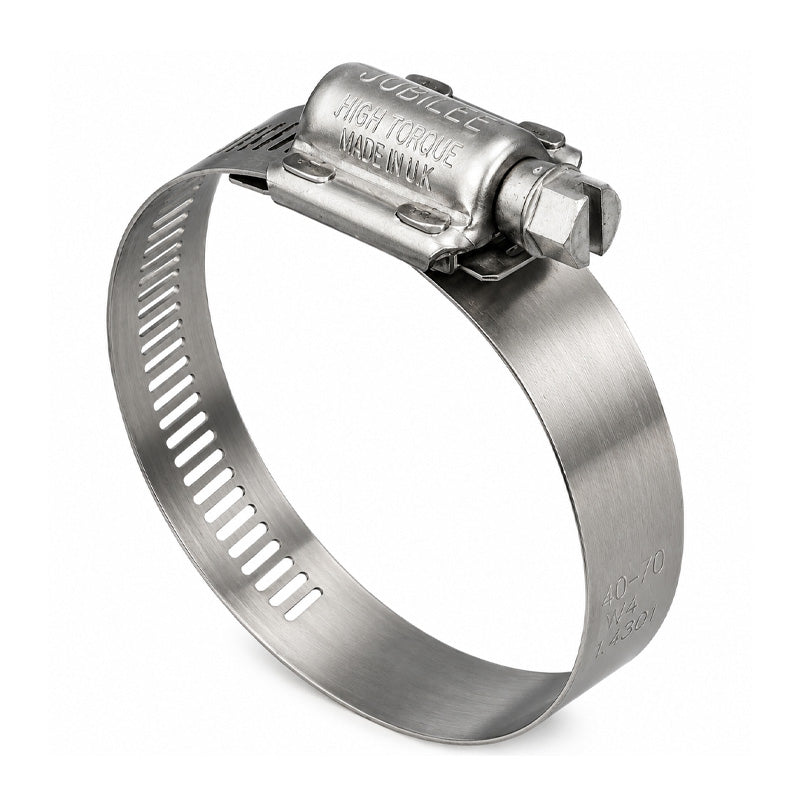

HT320 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 290mm-320mm Band Width 16mm
HT320 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 290mm-320mm Band Width 16mm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
Low stock
Price Break
3+
CHF 8.76
5+
CHF 8.41
9+
CHF 8.23
19+
CHF 7.97
49+
CHF 7.79
74+
CHF 7.35
99+
CHF 6.20
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
304 Stainless Steel High Torque Jubilee Clips: Jubilee® High Torque Clips are heavy duty and offer better sealing at lower torques. Suitable where clamp force needs to be high such as metal poles, plastic or reinforced hoses. Not suitable for soft hoses.
Benefits: High torque tightening.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 16mm
- Min Adjustment Range:
- 290mm
- Max Adjustment Range:
- 320mm
Technical
Technical
| Adjustment Range | 290mm - 320mm |
|---|---|
| Adjustment Range | 11-3/8 - 12-1/2 inch |
| Band Width (+/- 0.1) | 16mm |
| Band Thickness (+/- 0.1) | 0.7mm |
| Recommended Torque | 11.9Nm |
| Maximum Torque | 17Nm |
| Maximum Pressure | 30 Psi |
