SKU: HYDRA-SCHP-8-12-SNR

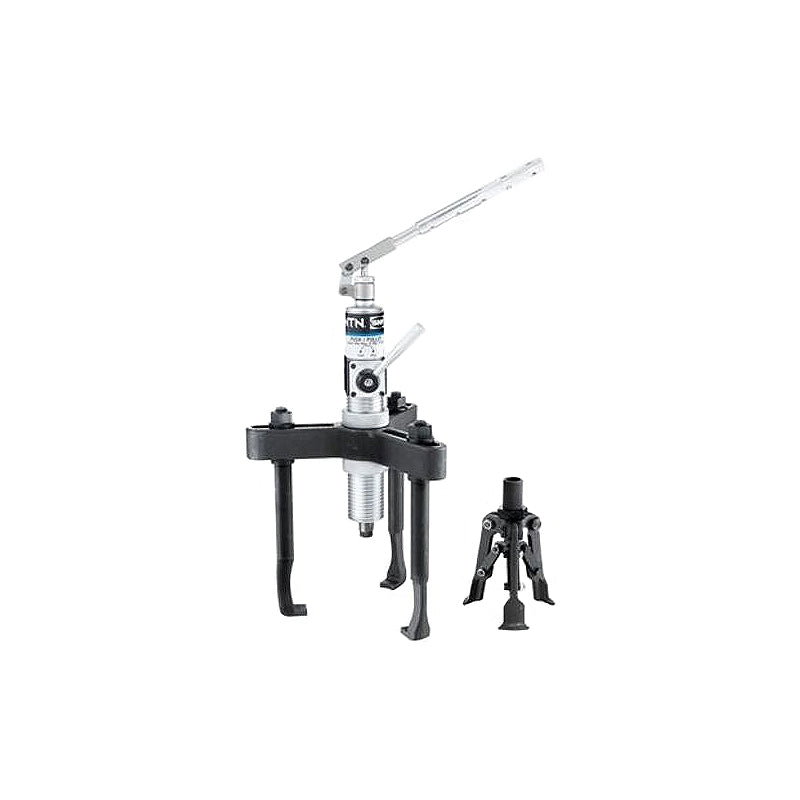

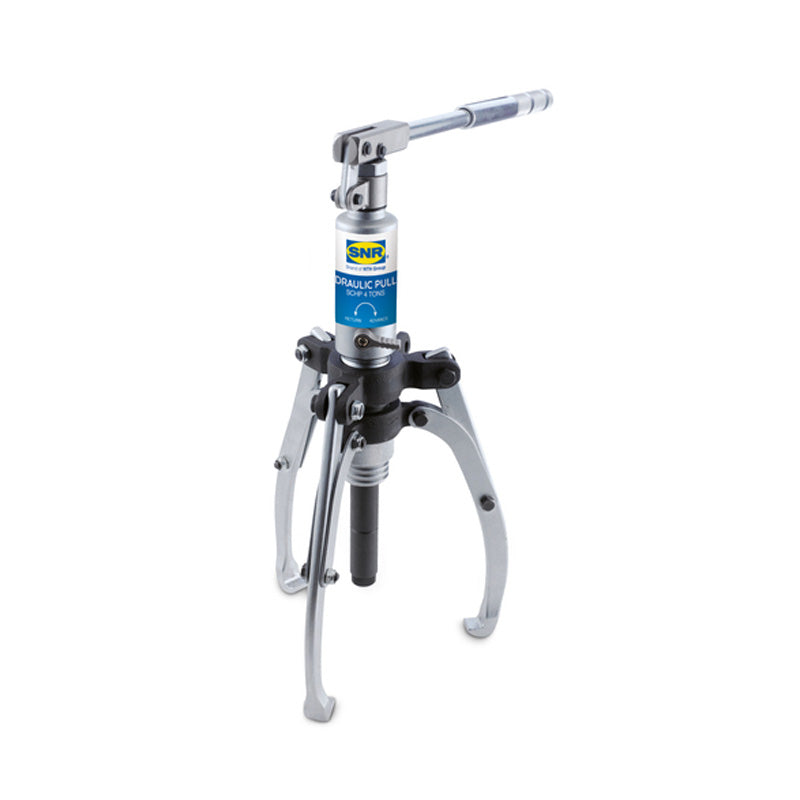

SNR SCHP 8-12 Self-Centring Hydraulic Push and Puller - 8000kg to 120000 kg - Allow 2-3 Days
SNR SCHP 8-12 Self-Centring Hydraulic Push and Puller - 8000kg to 120000 kg - Allow 2-3 Days
Regular price
CHF 3,102.10
ex VAT
Regular price
Sale price
CHF 3,102.10
ex VAT
In stock
Price Break
10+
CHF 2,760.87
19+
CHF 2,605.76
29+
CHF 2,574.74
39+
CHF 2,543.72
49+
CHF 2,512.70
74+
CHF 2,481.68
99+
CHF 2,326.58
199+
CHF 2,295.55
249+
CHF 2,264.53
499+
CHF 2,233.51
999+
CHF 2,171.47
Couldn't load pickup availability
Description
Description
SNR SCHP Hydraulic Push and Puller: This is a self-centering push and puller for the safe and effective mounting and dismounting of applications and parts.
Benefits: High-quality and Multi-functional.
- Brand / Quality:
- SNR - High Quality
Technical
Technical

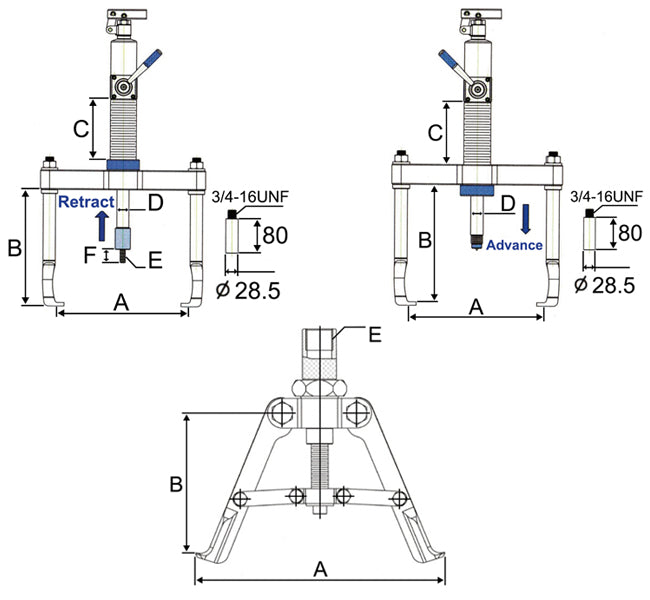

| --- | Thrust |
|---|---|
| Capacity | 8000kg |
| Max Reach | 130mm |
| Min Spread A | 44mm |
| Max Spread A | 280mm |
| B | 270mm |
| C | 140mm |
| D | 28mm |
| E | M12-P1.75 |
| F | 30mm |
| --- | Extraction (External) |
| Capacity | 12000kg |
| Max Reach | 240mm |
| Min Spread A | 85mm |
| Max Spread A | 300mm |
| B | 260mm |
| C | 140mm |
| D | 28mm |
| --- | Extraction (Internal) |
| Capacity | 8000kg |
| Max Reach | 105mm |
| Min Spread A | 110mm |
| Max Spread A | 210mm |
| B | 130mm - 150mm |
| E | 1 inch - 12UNF |
| --- | Weight |
| Mass | 19.5kg |
