• 17/64 inch Diameter Grade 10 Hardened 52100 Chrome Steel Ball Bearing
1 1

SKU: IG10_17/64

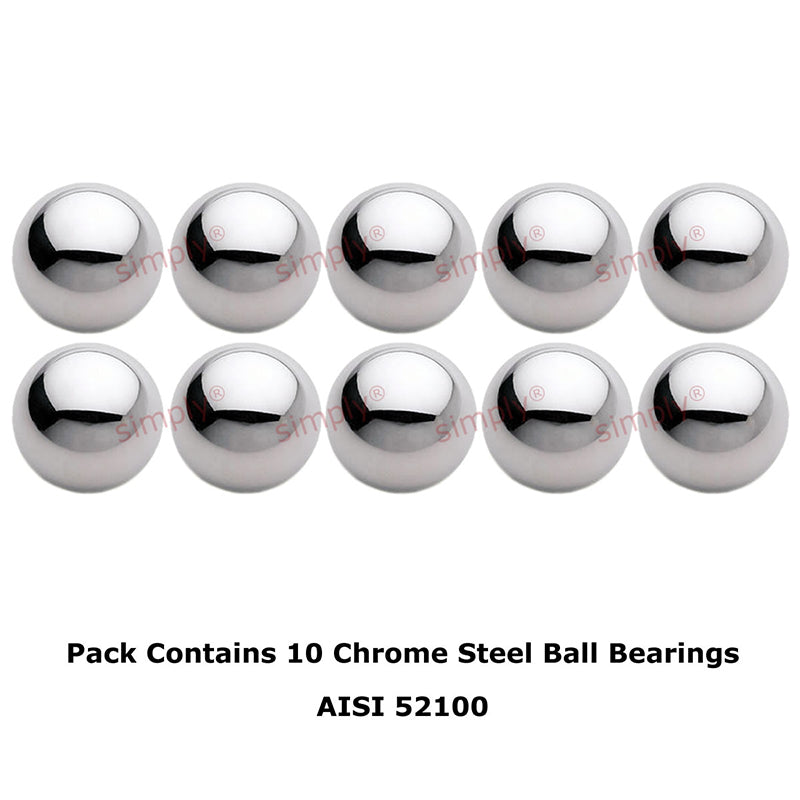

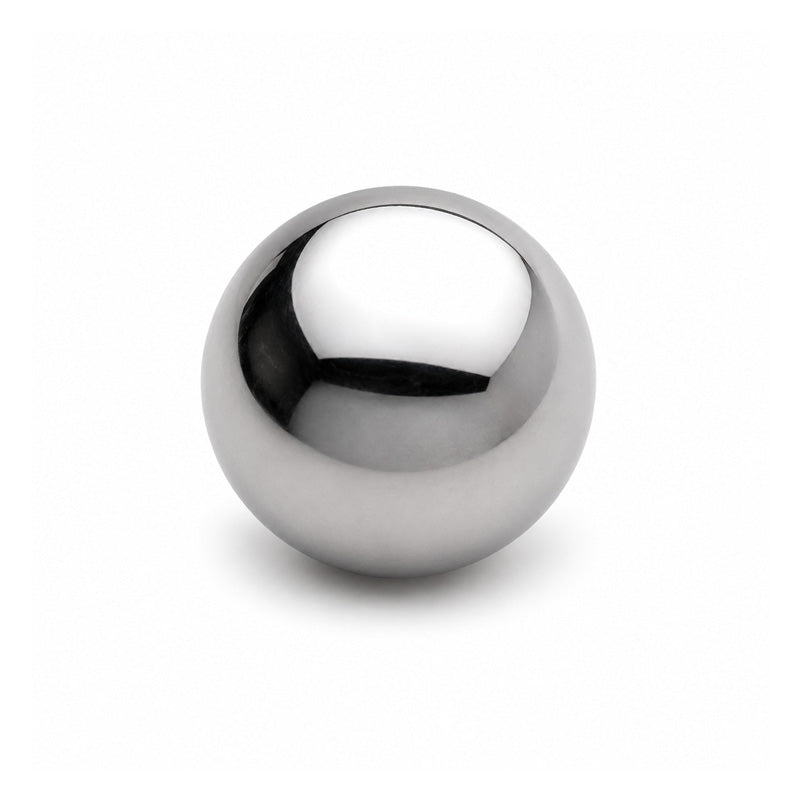

17/64 inch Diameter Grade 10 Hardened 52100 Chrome Steel Ball Bearing

17/64 inch Diameter Grade 10 Hardened 52100 Chrome Steel Ball Bearing
CHF 2.00 ex VAT
CHF 2.00 ex VAT
Sale Sold out

In stock

Price Break
5+ CHF 1.00
10+ CHF 0.86
20+ CHF 0.79
50+ CHF 0.72
100+ CHF 0.57
500+ CHF 0.50
1000+ CHF 0.43
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

High Precision Grade 10 Hardened Steel Ball Bearings: High Quality Graded Hardened Chrome Steel Ball bearings made from Chromium AISI 52100 steel. Hardened to 60-67 Rockwell Scale equivalent to 700-900 HV (Vickers Scale) and are hardened all the way through the ball. These are the same hardened steel balls used to manufacture bearing assemblies and have a high duty and life cycle.
Manufactured in compliance to the following international standards: AISI52100 / EN31 / BS534A99 / W1.3505 / BS535A99 / UNI100C6 / AFN100C6 / DIN100C6 / JIS G4805 SUJ2

Brand / Quality:
Simply Loose Ball - High Quality
Outside Diameter:
6.75mm = 0.266 (17/64) inch
Grade:
10
Technical
Material AISI 52100 Chrome Steel
Min Crush Load 2535kg
Hardness 60-67 HRC
Hardness Depth Through Hardened
Corrosion Resistance Keep Oiled
Note Not Drillable
Approx Weight Each 1.25g
Attracted to Magnets Yes
Avg Qty / Litre 3800
