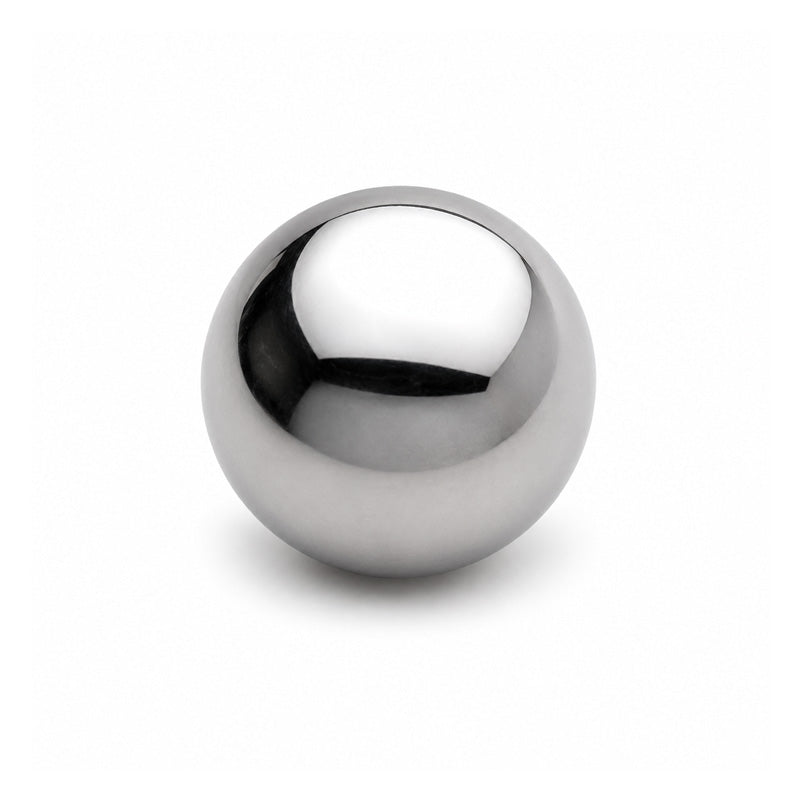

• 5/64 inch Diameter Grade 100 Hardened 52100 Chrome Steel Ball Bearing
1 1

SKU: IG100_5/64

5/64 inch Diameter Grade 100 Hardened 52100 Chrome Steel Ball Bearing

5/64 inch Diameter Grade 100 Hardened 52100 Chrome Steel Ball Bearing
CHF 1.00 ex VAT
CHF 1.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 0.43
20+ CHF 0.29
50+ CHF 0.18
100+ CHF 0.13
500+ CHF 0.07
1000+ CHF 0.05
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Industry Standard Grade 100 Hardened Steel Ball Bearings: High Quality Graded Hardened Chrome Steel Ball bearings made from Chromium AISI 52100 steel. Hardened to 60-67 Rockwell Scale equivalent to 700-900 HV (Vickers Scale) and are hardened all the way through the ball. These are the same hardened steel balls used to manufacture bearing assemblies and have a high duty and life cycle.
Manufactured in compliance to the following international standards: AISI52100 / EN31 / BS534A99 / W1.3505 / BS535A99 / UNI100C6 / AFN100C6 / DIN100C6 / JIS G4805 SUJ2

Brand / Quality:
Simply Loose Ball - High Quality
Outside Diameter:
1.98mm = 0.078 (5/64) inch
Grade:
100
Technical
Material AISI 52100 Chrome Steel
Min Crush Load 289kg
Hardness 60-67 HRC
Hardness Depth Through Hardened
Corrosion Resistance Keep Oiled
Note Not Drillable
Approx Weight Each 0.03187g
Attracted to Magnets Yes
Avg Qty / Litre 151000
